Data Rate: | 40Gbps | Fiber: | OM2/OM3/OM4 |
---|---|---|---|
Cable Diameter: | 3.0mm | Length: | 1m 2m 3m 4m 5m Or Customized |
Form Factor: | QSFP+ | OEM: | Support |
High Light: | 40Gbps Active Optical Cable,QSFP+ Active Optical Cable,QSFP+ To SFP+ AOC Cable |

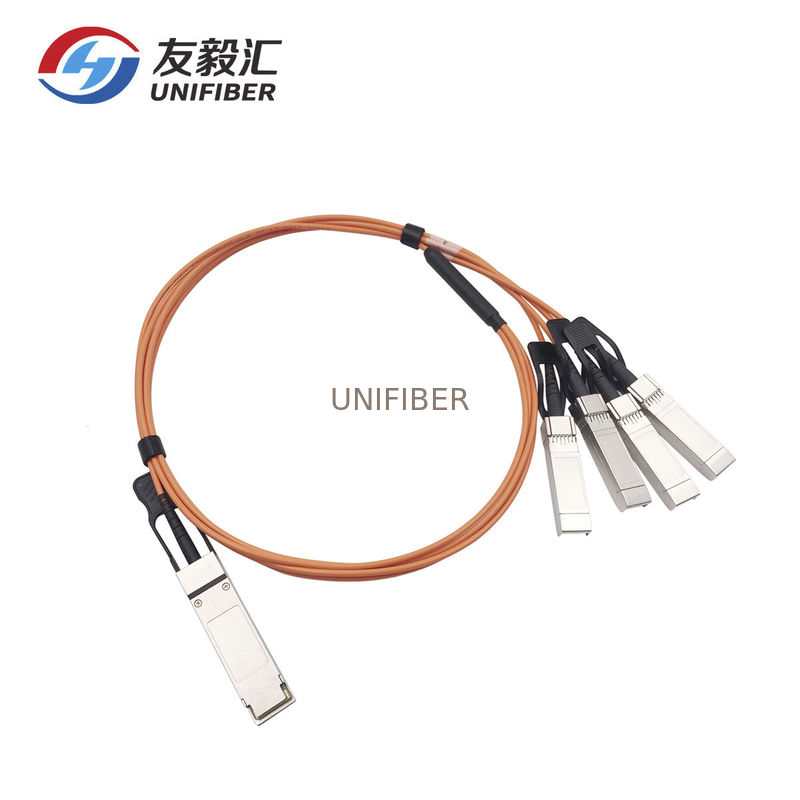

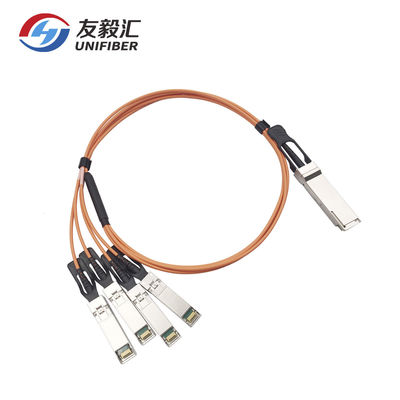

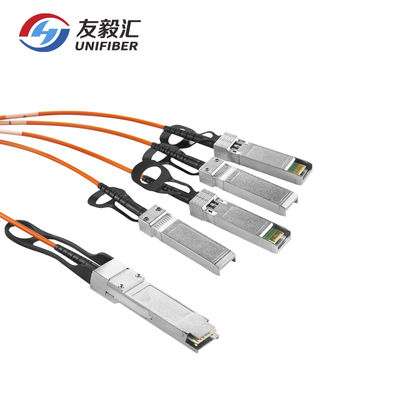

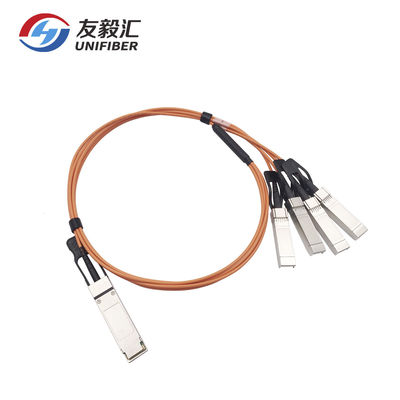

40G QSFP+ to QSFP+ Optical Breakout Cable Multimode Fiber 50/125um, QSFP+ Active Optical AOC Cable 1~10m
40G QSFP+ to 4x 10G SFP+ AOC breakout active optical cables are designed for 40GBASE-SR4 to 4x 10GBASE-SR Ethernet links reach up to 100m (OM3) or 150m (OM4) over Multi-Mode Fiber (MMF).
Features:
Hot-pluggable QSFP+ form-factor connectors
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Differential AC-coupled high-speed data interface
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
Data rate up to 41.2Gbps
Length up to 300m over OM3 MMF
Power consumption < 1.5W per end
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)
Applications:
40GBASE-SR4 Ethernet
InfiniBand 4xSDR/DDR/QDRData center network
Fiber Channel
InfiniBand FDR/EDR 100Gbs
Ethernet
