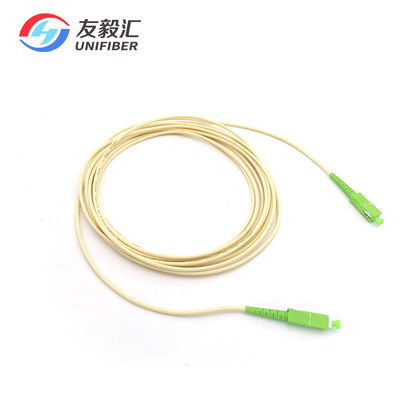

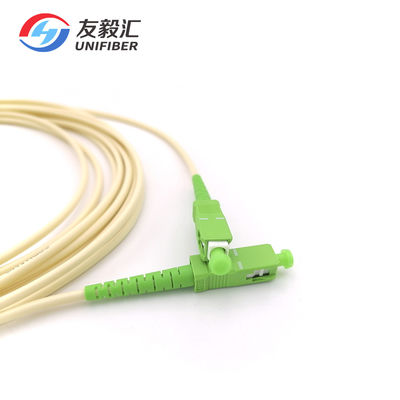

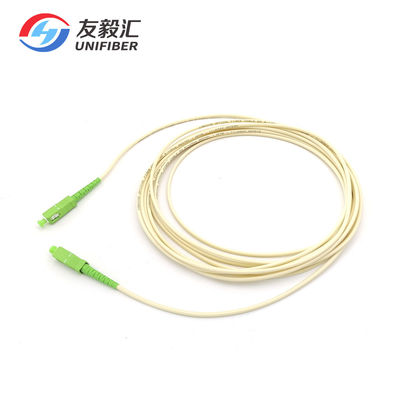

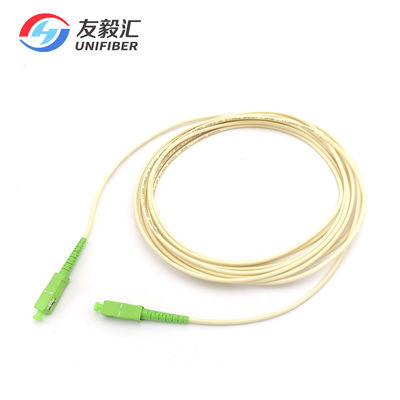

LSZH G657A2 SC/APC-SC/APC 2.0mm FTTH Drop Patch Cord

Large Image : LSZH G657A2 SC/APC-SC/APC 2.0mm FTTH Drop Patch Cord

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	LSZH G657A2 SC/APC FTTH Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	LSZH G657A2 SC/APC-SC/APC 2.0mm Ivory White FTTH Drop Patch Cord 3 Meters	Fiber:	SM 9/125um G657A2
Connector:	SC/APC	Cable Jacket:	LSZH
Jacket Color:	Ivory White	Length:	1/1.5/2/3/5/7M Or Others
OEM Brand:	Support	Application:	FTTH
High Light:	2.0mm FTTH Drop Patch Cord , G657A2 Drop Patch Cord , LSZH Optical Patch Cord

Fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end. There are with Singlemode, Multimode, OM3,OM4,OM5 for options, always come as 1.2/1.6/2.0/3.0mm with PVC or LSZH. UNIFIBER can customized make patch cords with different color jacket per customer's requirement.

Features
Low insertion loss, high return loss
G652D/G657A1/G657A2/G657B3 Optional

SC/APC on both ends

1/1.5/2/3/5/7m or any other length avaliable
High credibility and stability
Good in repeatability and exchangeability

Application
FTTX
Broadband network

Data Centre
Telecommunication networks
CATV
LAN and WAN

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
