Product Details:
Payment & Shipping Terms:
|

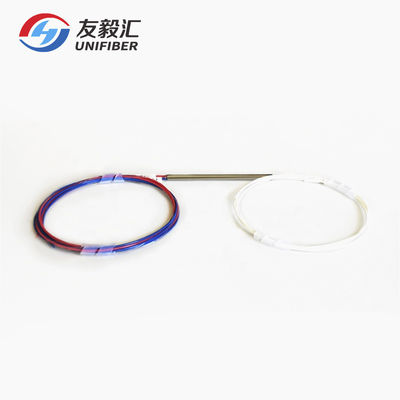

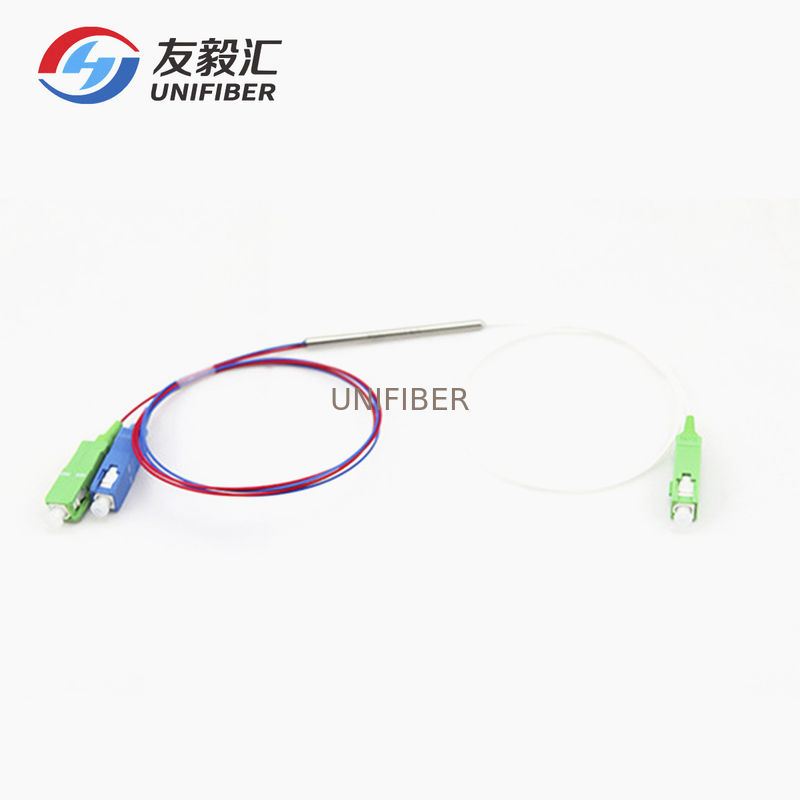

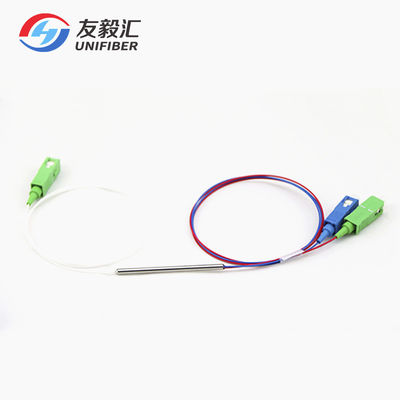

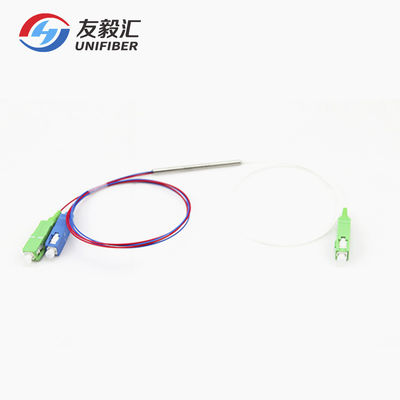

| Product: | 1310/1550nm Single Mode 1x2 Fused WDM Coupler | Wavelength: | 1310/1550nm |
|---|---|---|---|
| Fiber Type: | Corning SMF-28e | Operating Bandwidth (nm): | ±15 |
| Configuration: | 1×2 Or 2×2 | Pigtail Type: | 250um Bare Fiber Or 900um Loose Tube |
| Package: | Steel Tube | Application: | CATV |
| High Light: | High Isolation WDM Coupler,CATV WDM Coupler,1550nm Single Mode Division Multiplexer |
||
1310/1550 WDM can be used to combine or split 1310nm and 1550nm optical signals, which double the fiber transmission capability and ensure bi-direction communication in a single fiber
Features
Ultra Low Insertion Loss
Ultra High Isolation
Low Polarization Sensitivity
High Stable & Reliable
Application
Telecommunications
CATV
Subscriber Loop
Local Area Networks
| Parameter | WA | WB | WC | |
| Grade | P | A | P | P |
| Insertion Loss(Max)(dB) | 0.3 | 0.4 | 0.7 | 1.2 |
| lsolation(Min.)(dB) | ≥17 | ＞16 | ＞34 | ＞45 |
| PDL(dB) | ≤0.05 | ＜0.10 | ＜0.10 | ＜0.15 |
| Operating Wavelength (nm) | 1295 ~ 1325/1528 ~ 1565 | |||
| Return Loss (Min.) (dB) | ≥55 | |||
| Directivity(dB) | ≥55 | |||
| Operating Temperature (℃) | -10~+70 | |||
| Storage Temperature (℃) | -40~+85 | |||
| Fiber Pigtail Length (m) | 1 m or custom length | |||
| Fiber Type | Corning singlemode SMF-28 | |||
| Port Configuration | 1x2 or 2x2 | |||
