| Product: | Sc Apc To Sc Apc Simplex Os2 G657b3 Fiber Patch Cord | Connector: | SC/APC To SC/APC |
|---|---|---|---|
| Fiber Type: | G657B3 | Cable Jacket: | LSZH White |
| Cable Diameter: | 3.0mm Armored | Length: | Customized |
| Application: | FTTH | ||
| High Light: | G657b3 Armored Fiber Patch Cord,Simplex OS2 Armored Fiber Patch Cord,SC APC Optic Fiber Patch Cord |
||

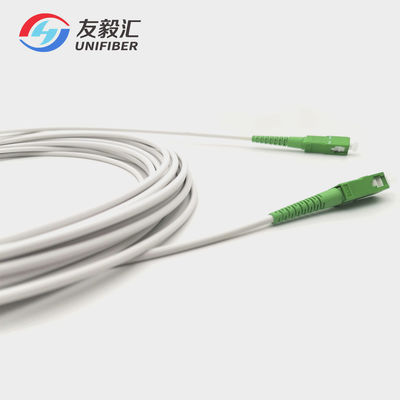

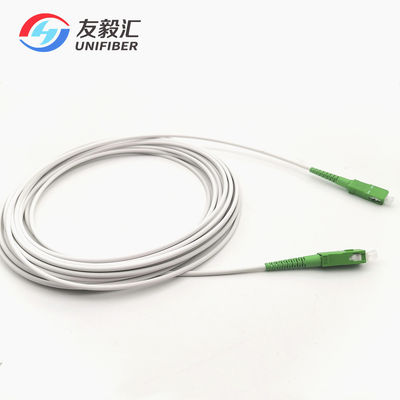

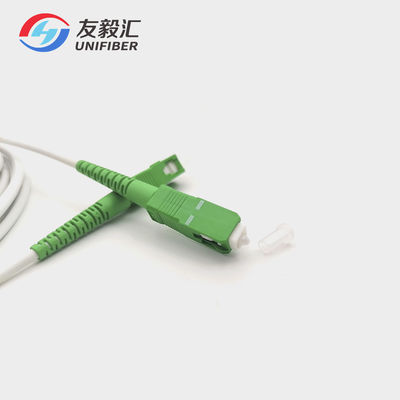

sc apc to sc apc simplex os2 g657b3 armored fiber patch cord is a kind of patch cord but assembly with ftth drop cable. Used widely in Fact plate, terminal box, ONU tec. For ftth drop cable patch cords, normally use G657A1/G657A2 or G657B3 fiber with LSZH jacket, G657B3 fiber with the smallest minimum bending radius of 5mm, which become more and more popular for last 100m cable in FTTH project.
Features:
Excellent mechanical endurance
Good in repeatability and exchange
Low insertion loss and back reflection loss
Green Production, CE, RoHS Standard
Application:
FTTX Solution
Telecommunications
CATV, LAN, MAN, WAN
Test &Measurement
Specification
| item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
