Product Details:
Payment & Shipping Terms:
|
| ITU: | 4/8/16 Channel 100G DWDM MUX DEMUX Passive Optical Module | Channel Spacing: | ITU 100GHz Grid |
|---|---|---|---|
| Number Of Channels: | 4/8/16CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux,Demux,OADM | Fiber Type: | 900um Loose Tube |
| In/Out Connector: | LC/UPC | ||
| High Light: | 16 Channel DWDM MUX DEMUX,100G DWDM MUX DEMUX,900um Passive Optical Module |
||

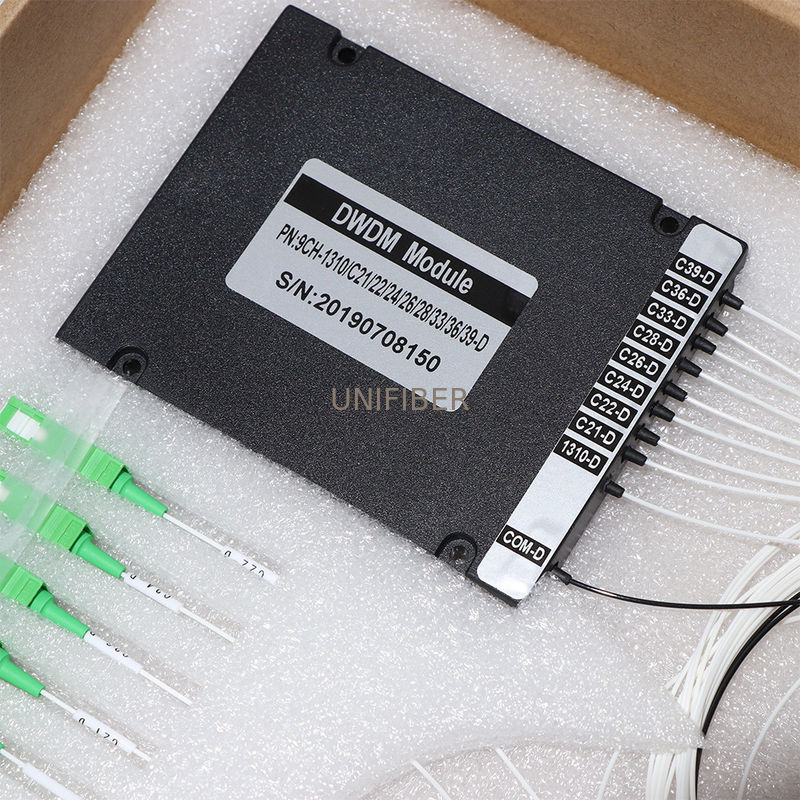

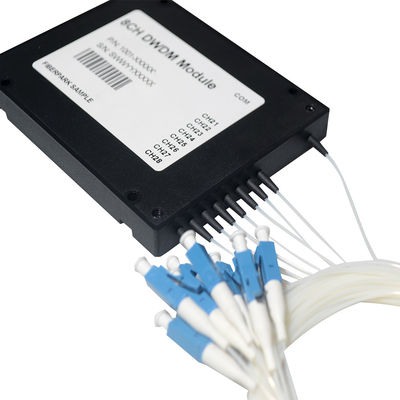

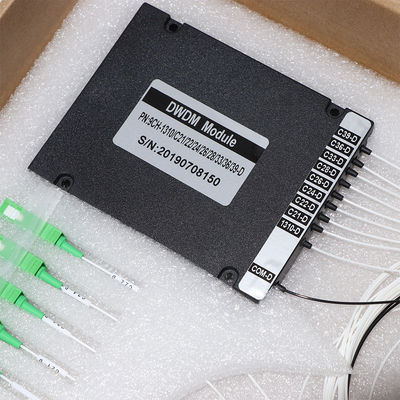

4/8/16 Channel 100G DWDM MUX DEMUX module utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Features
Low Insertion Loss
High Channel Isolation
Optical path epoxy free
Excellent thermal stability and reliability
telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
Application
DWDM Network
Add/Drop System
CATV Fiberoptic System
Metro/Access Network
Fiber Optical Amplifier
