Product Details:
Payment & Shipping Terms:
|

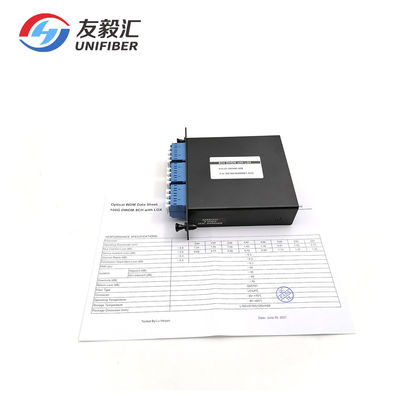

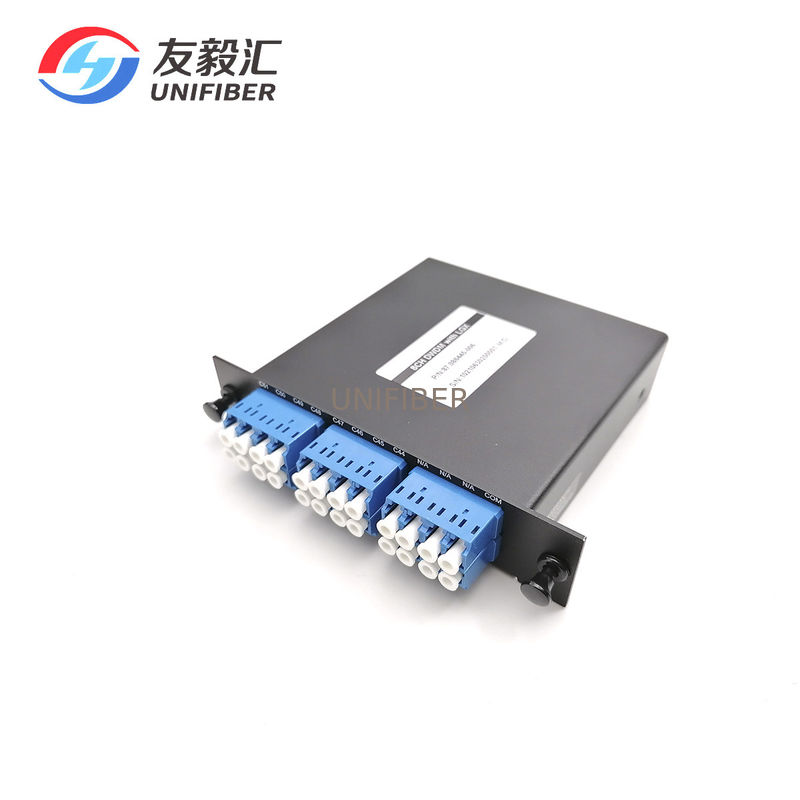

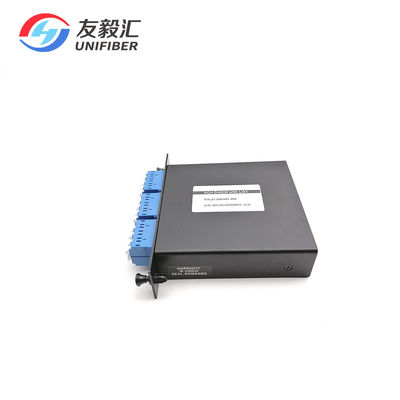

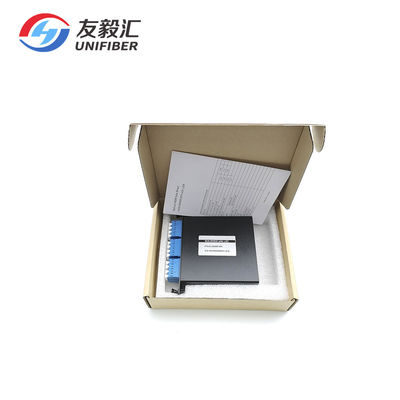

| Product: | 8+1 Channel DWDM Mux Demux LGX Cassette Module With 1310nm | Configuration: | Mux Demux |
|---|---|---|---|
| No Of Channel: | C44-C51+1310+/-50 | Channel Spacing: | 100Ghz |
| Connector: | LC/UPC | Package: | LGX Cassette |
| High Light: | 100Ghz DWDM Mux Demux,1310nm DWDM Mux Demux,LGX Cassette Wdm Module |
||
100GHz/200 GHz dense wavelength division multiplexer (DWDM module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
| Features | Applications |
| Low Insertion Loss | Channel Add/Drop |
| Wide pass band | DWDM Network |
| High channel | Wavelength Routing |
| High stability and reliability | Fiber Optical Amplifier |
| Epoxy free on optical path | CATV Fiberoptic System |
| Parameters | Specifications | Unit | |
| Operating Wavelength | 1260~1620 | nm | |
| Channel | C44-C51+1310+/-50 | nm | |
| Channel Spacing | 100 | GHz | |
| Channel Passband (@-0.5dB bandwidth) | ±0.11 | nm | |
| Insertion Loss1 | ≤3.5 | dB | |
| Isolation | Adjacent Channel | ≥30 | dB |
| Non-Adjacent Channel | ≥45 | dB | |
| Passband Ripple | ≤0.3 | dB | |
| Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
| Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
| Polarization Dependent Loss | ≤0.3 | dB | |
| Polarization Mode Dispersion | ≤0.1 | ps | |
| Directivity | ≥50 | dB | |
| Return Loss | ≥45 | dB | |
| Maximum Power Handing | 300 | mW | |
| Operating Temperature | -20~+70 | ℃ | |
| Storage Temperature | -40~+85 | ℃ | |
| Operating Humidity | 5~95 | %RH | |
| Connector | LC/UPC | ||
| Fiber Length | / | m | |
| Package size | 100x100(Panel 129) x28 | mm | |
Internal Structure
External structure
Mechanical Dimensions & External structure
