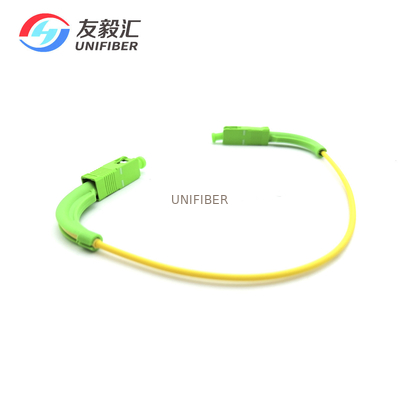

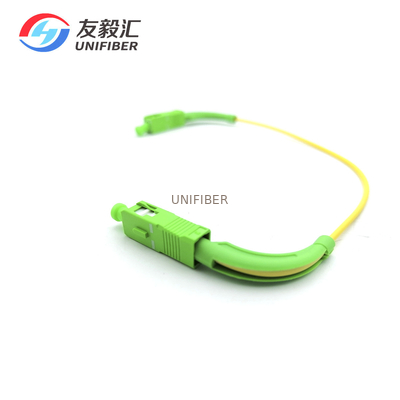

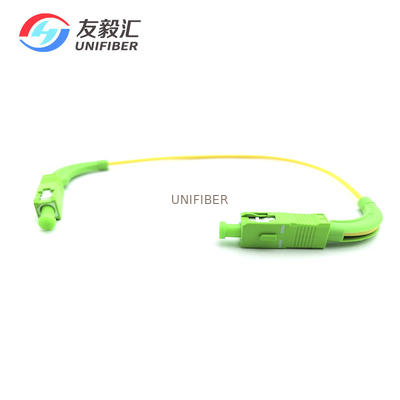

90 Degree Angled Boot SC / APC Simplex Fiber Optic Patch Cord Single Mode 0.3M

Large Image : 90 Degree Angled Boot SC / APC Simplex Fiber Optic Patch Cord Single Mode 0.3M

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	90degree Angled Boot Fiber Optic Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	90degree Angled Boot Fiber Optic Patch Cord	Connector:	SC/APC
Connector Boot:	90degree Angled Boot	Fiber Type:	Single Mode G657A2
Length:	0.3/0.5/1m Or Customized	Jacket:	LSZH Yellow
High Light:	APC Simplex Fiber Optic Patch Cord , 0.3M Simplex Fiber Optic Patch Cord , 90 Degree Fiber Optical Patch Cord

45/90 degree angled boot fiber optic patch cables have the same performance as regular straight boot patch cables. The only difference is that they have 45/90 degree rubber boot instead of a straight one. All common type of connectors are available with 90 degree boot including SC, ST, LC E2000, FC etc. Unifiber manufactures a whole line of fiber optic patch cords.

APPLICATION
Data Centre

Telecommunication networks

CATV LAN and WAN

FTTX Broadband network

FEATURES

45/90 degree angled boot
Low insertion loss, high return loss

Small, light, high dense connection

Standard exact plastic material

High credibility and stability

Good in repeatability and exchangeability

Parameters	45/90 degree angled boot SC,LC fiber optic patch cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
