Product Details:
Payment & Shipping Terms:
|
| Product: | Indoor Rugged Armored Fiber Optic Patch Cable | Connector: | FC/APC To FC/APC |
|---|---|---|---|
| Fiber Mode: | OS2 9/125 Single Mode | Cable Diameter: | 3.0mm |
| Cable Jacket: | PVC (OFNR) | Length: | 1m 2m 3m 5m 10m |
| High Light: | Rugged Armored Fiber Patch Cord,OFNR 1m Armored Fiber Patch Cord,FC APC armored fiber patch cable |
||
Description of Single Mode FC/APC-FC/APC Indoor Rugged Armored Fiber Optic Patch Cord
Unifiber supply armored fiber optic cable with build-in metal armor, it can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests. with FC,LC,ST,SC connector and any customized length for options.
Features
Strong stainless steel tube protection
Good performance on bending and routing
High pull-resistant
Low insertion loss
Application
Most hazardous areas
The environments with slight dust, oil, gas, moisture
The environments with damage-causing rodents and pest
Telecommunication
FTTH
Specification
|
Product
|
Indoor Rugged Armored Fiber Patch Cord |
|
Fiber Mode
|
OS2 9/125μm
|
|
Wavelength
|
1310/1550nm
|
|
Fiber Count
|
Simplex
|
|
Insertion Loss
|
≤0.3dB
|
|
Return Loss
|
UPC ≥50dB, APC ≥60dB
|
|
Cable Diameter
|
3.0mm
|
|
Cable Jacket
|
PVC / LSZH
|
| Connector |
FC LC ST SC
|
| Length | 1m 2m 3m 5m 10m |

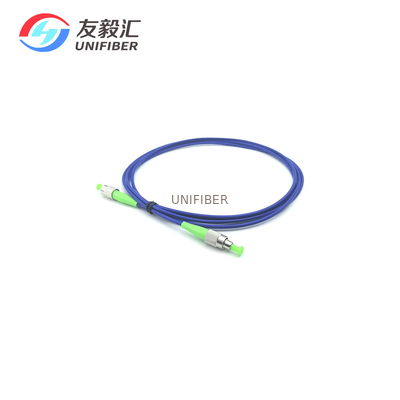

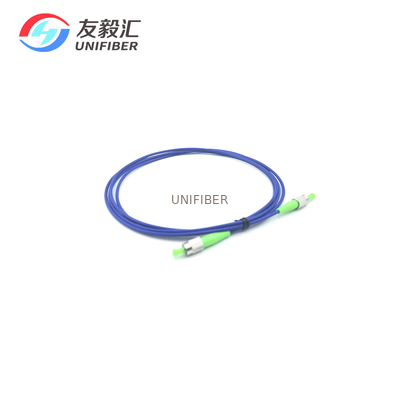

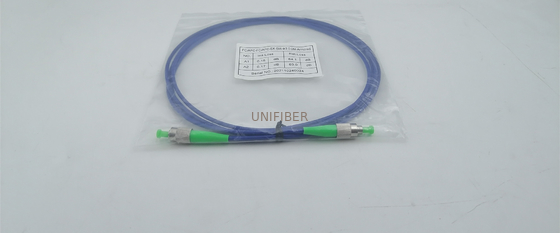

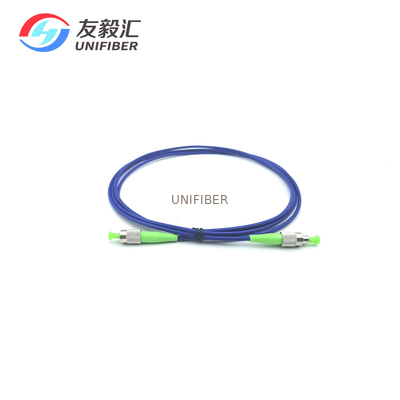

Picture of Indoor Rugged Armoured Fiber Optic Patch Cable
