100Ghz Channel Spacing C45 1x2 Polarization Maintaining DWDM, PM1550 fiber With 900um loose tube, Slow axis working

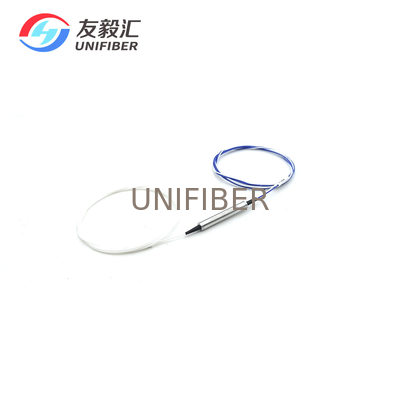

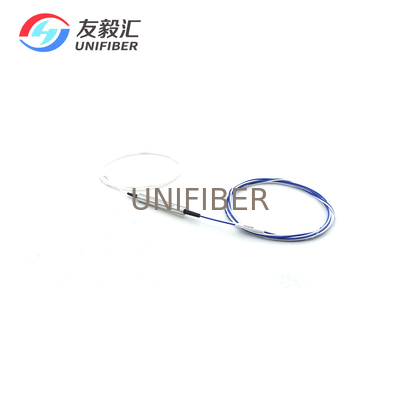

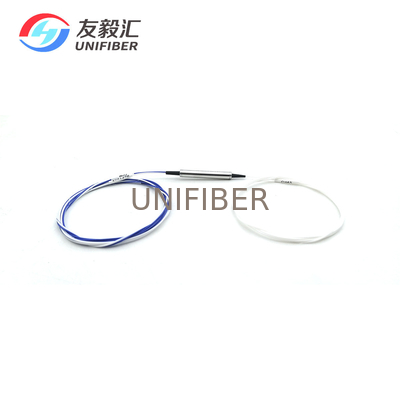

Large Image : 100Ghz Channel Spacing C45 1x2 Polarization Maintaining DWDM, PM1550 fiber With 900um loose tube, Slow axis working

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	100GHz 1 x 2 PM DWDM Filter

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Channel Spacing:	100Ghz Channel Spacing	Fiber Type:	Fiber Type
Pigtail Type:	900um Loose Tube	Axis Aligment:	Slow Axis Working
Wavelength:	1550nm	Channel:	C45

100GHz/200GHz 1x2 wavelength multiplexer utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system

Application

DWDM Network & Systems

DWDM Channels Add/Drop
Accessing WAN Networks
EDFA Application Systems
Long Haul Network & Systems

Features

Excellent Channel Isolation

Low Insertion Loss
High Stability & Reliability
ITU Compliance

Specification

Parameter		Mux/Demux
Channel Wavelength(nm)		ITU Grid
Channel Spacing(GHz)		100	200
Channel Passband (@-0.5dB bandwidth)(nm)		>0.3	>0.5
Pass Channel Insertion Loss (dB)		≤1.0	≤0.9
Reflection Channel Insertion Loss(dB)		≤0.6	≤0.6
Channel Ripple(dB)		<0.3
Isolation(dB)	Adjacent	>30
	Non-adjacent	>40
Insertion Loss Temperature Sensitivity(dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss(dB)		<0.1
Polarization Mode Dispersion(ps)		<0.1
Directivity(dB)		>50
Return Loss(dB)		>45
Maximum Power Handling(mW)		300
Opterating Temperature(℃)		-10~+75
Storage Temperature(℃)		-40~+85
