Product Details:
Payment & Shipping Terms:
|

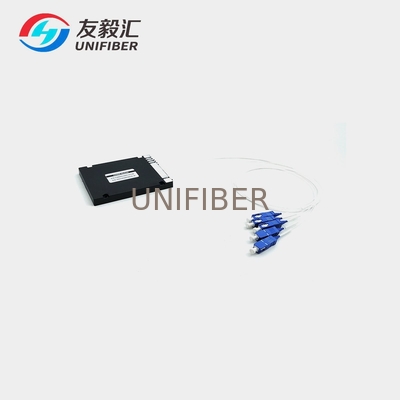

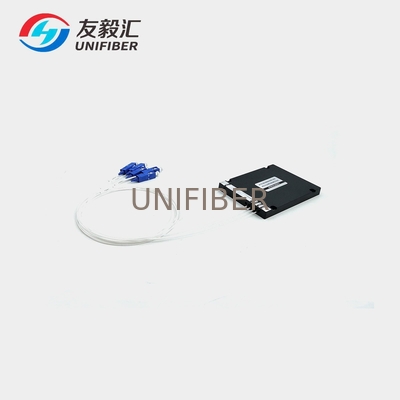

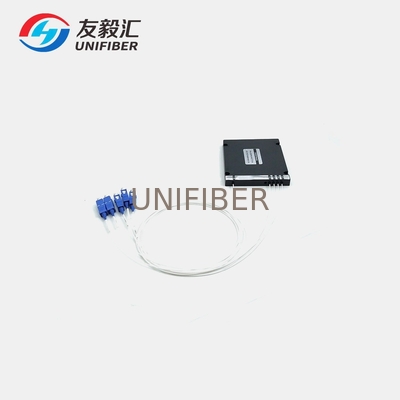

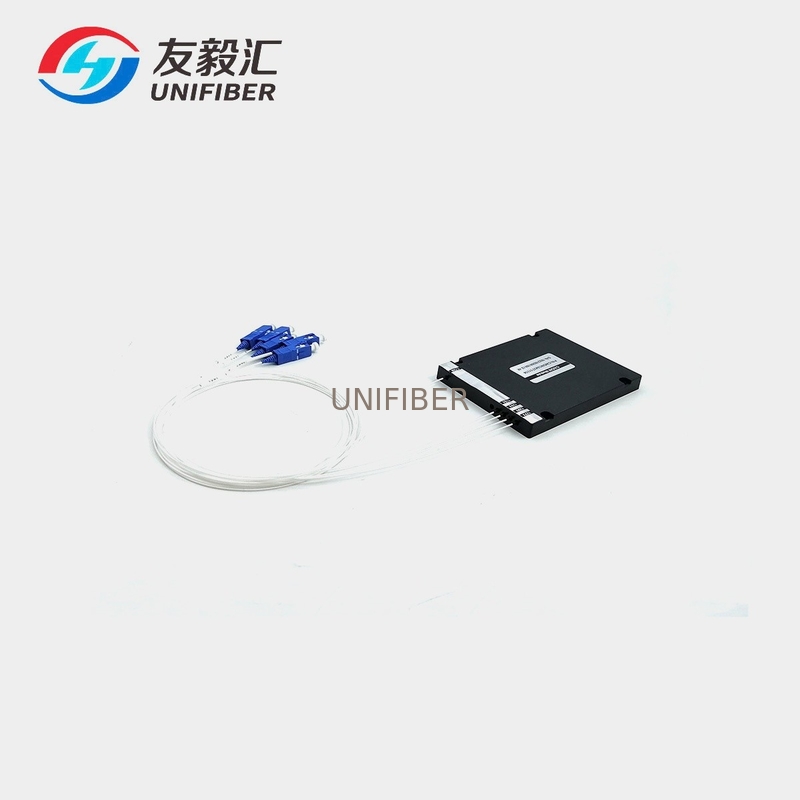

| Product: | 4CH PM CWDM Mux/Demux | Wavelength: | 1270-1610(18 CWDM Wavelengths Optional) |
|---|---|---|---|
| CWDM Channel Spacing: | 20nm | Extinction Ratio(@23℃): | ≥20dB |
| Fiber Type: | PM 1550nm | Working Axis: | Slow Axis Working,Fast Axis Block |
| Package: | 100x80x10 ABS Module |
Performance Specifications:
| Parameters | 4Channel | Unit | |
| Channel Wavelength | 1270-1610(18 CWDM wavelengths optional) | nm | |
| CWDM Channel Spacing | 20 | nm | |
| Channel Passband (@0.5dB bandwith) | +/-6.5 | nm | |
| Extinction Ratio(@23℃)(dB) | ≥20 | dB | |
| Insertion Loss(@23℃)(dB) | ≤1.8 | dB | |
| Insertion Loss(Typ.) (@23℃)(dB) | 1.2 | dB | |
| Channel Ripple | <0.5 | dB | |
| Isolation | Adjacent | ≥30 | dB |
| Non-Adjacent | ≥40 | dB | |
| Directivity | ≥50 | dB | |
| Return Loss | ≥45 | dB | |
| Maximum Power Handing | 500 | mW | |
| Operating Temperature | -10~+75 | ℃ | |
| Storage Temperature | -40~+85 | ℃ | |
| Humidity | 0 to 95%RH not condensed | ||
| Fiber Type | PM 1550 | ||
| Working Axis | Slow axis working,Fast axis block | ||
| Package Size | 100x80x10 | mm | |
*Notes: All insertion loss values include loss values for connector
Ordering Information
| CWDM | X | X | X | X | X | X | XX | X |
| Channel Spacing | Number of Channels | 1st Channel | Package | Axis Alignment | Fiber Diameter | Fiber Length | Connector | |
| C=20nm |
04=4 Channels 08=8 Channels 16=16 Channels 18=18 Channels |
27=1270nm ….. 47=1470nm 49=1490nm ……. 61=1610nm |
1=ABS Box Module 2=Rackmount 3=LGX box 4=Insert Box S=Specify |
1=Slow axis working 2=Fast axis working |
0=250um 1=900um 2=2.0mm 3=3.0mm S=Specify |
0=0.5m 1=1m 2=2m 3=3m S=Specify |
0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST S=Specify |
