|Material:||ABS Plastic||Max Capacity:||144F|
|Color:||Black Or White||Application:||Outdoor Wall Mounted Or Pole Mounted|

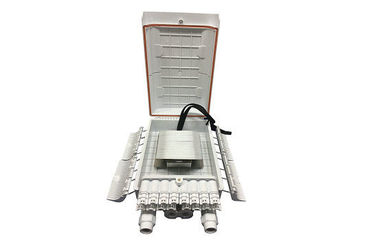

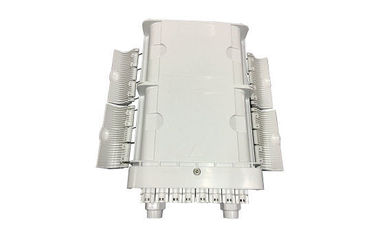

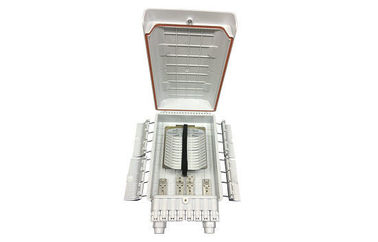

fiber optic junction box,
optical network terminal box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.It is suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.
1, Total enclosed structure.
2, Material: PC,wet-proof. water-proof. dust-proof. anti-aging, protection level up to IP68.
3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4, Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
5, Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
1) Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85%(+30℃)
Atmospheric pressure: 70KPa~106Kpa
2) Main technical data-sheet
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times
4. Configuration Table:
Table 1- Model and Configuration
|Model||Description||Size(Pic 1)||Max Capacity||Installation Size(Pic 2)||Cable entry|
|24 Core||Splitter Box||388*242*128||24||135*135*190||Express port|
|16 Core||Splitter Box||388*242*128||16||135*135*190||Express port|
