| Product: | Passive CWDM Module | No Of Channels: | 8 |
|---|---|---|---|
| Wavelength: | 1270-1610nm | Channel Spacing: | 20nm |
| Fiber: | SMF-28e | Package: | 1U Rack Mount |
| High Light: | 1U 8 Channel Multiplexer,Demux 8 Channel Multiplexer,ROHS CWDM Multiplexer |
||

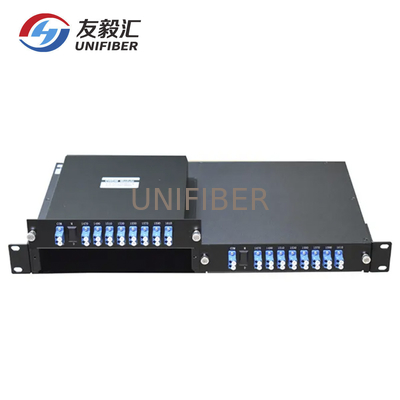

1U Rack Mount 8 Channel Multiplexer CWDM Mux Demux LGX Single Fiber
Description of 1U Rack Mount 8 channels CWDM Mux Demux LGX Single/Dual Fiber LC/UPC
CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems.
Features
2, 4, 8, 16 or 18 CWDM ( Coarse Wavelength Division Multiplexer ) Wavelengths Optional
Color Coded Equipment Pors for Ease of Installation
Reliable Passive Thin Film Filter WDM Optical Technology
Low Optical Insertion Loss, Expoxy-Free in Optical Path
Telcordia (Bellcore) GR-1221-CORE
Mux+Demux Fits in 1'U 19 Rack-mount Chassis Optional
RoHS Complaint
Application
PON Networks
CWDM System
CATV Links
Specification

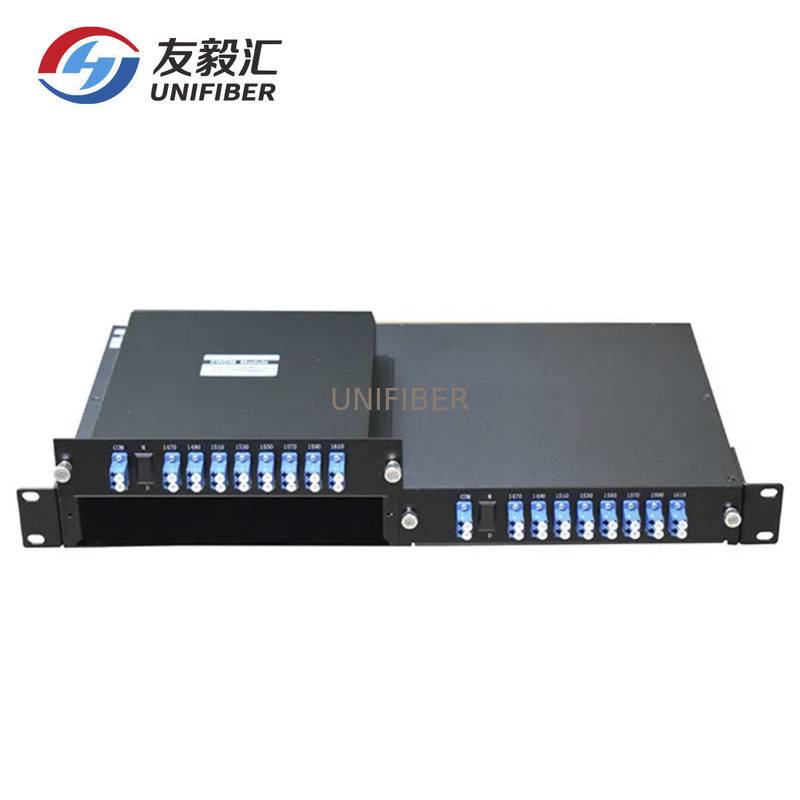

Picture of Passive 4/6/8/12/16/18CH CWDM Mux Demux Multiplexer
