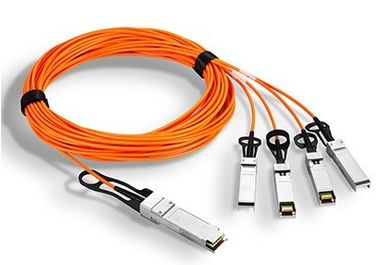

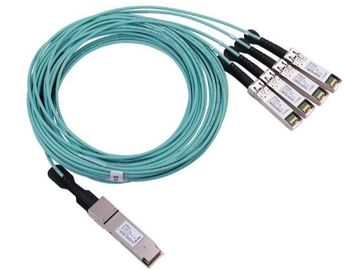

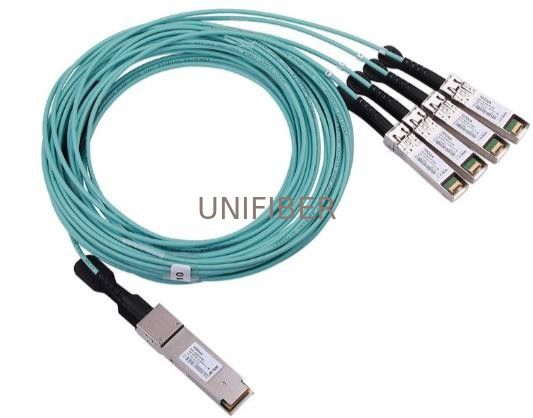

PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables

PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables
PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables

Large Image :  PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS CE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: individual package
Delivery Time: 5~8days
Payment Terms: LC/T/T
Detailed Product Description
Description: QSFP28 To 4*SFP28 AOC Data Rate: 100Gbps
Reach: 0.5~100M Tx: 850nm VCSEL
Rx: PIN Length: Customized
High Light:

sfp optical transceiver

,

dwdm sfp transceiver

100G QSFP28 To 4x 25G SFP28 Breakout Active Optical Cables,100G QSFP28 AOC



Description:

UNIFIBER 100G QSFP28 AOC series contain QSFP28 to QSFP28 AOC,QSFP28 to 4*SFP28 AOC , which are compliant with MSA QSFP28,IEEE802.3 and SFF-8431.Low power consumption, small volume and high speed, which is beneficial to increase capacity of data center, improve port density and reduce power consumption.Mainly used in the data center interconnection and other environments.



Features:

* Bandwidth density of 100 Gbps
* Transmission data rate up to 28Gbps per channel
* 4 channels 850nm 25G VCSEL array
* 4 channels 25G PIN photo detector array
* Internal CDR circuits on both receiver and transmitter channels
* Hot Pluggable QSFP28 form factor
* Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
* Operating case temperature 0°C to +70°C
* 3.3V power supply voltage
* Low power consumption<2.5W
* RoHS 6 compliant(lead free)



PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables 0PIN Rx Fiber Optic Transceiver QSFP28 To 4x 25G SFP28 Breakout Active Cables 1
