SC/APC Fiber Optic Connectors

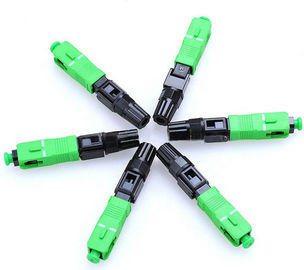

Large Image : SC/APC Fiber Optic Connectors

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	blister case
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Connector Type:	SC/APC	Color:	Green
Durability:	>500 Times	Operation Temperature:	-40~+75°C
Application:	FTTH Field Termination	Applicable For:	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
High Light:	quick connect fiber optic connectors , industrial fiber optic connectors

Fiber quick connector, SC/APC fiber optic fast connectors,Quick and easy for FTTH field termination.

Quick Assembly SC fiber optic fast connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipmentand fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.

Features
Factory-installed fiber stub.

No epoxy and polishing required, No special tools needed when installed.

Allows up to three re-termination result.

Easily installed, Quick and easy fiber termination in the field.

Only 30 seconds needed to learn the process of installation and making.

Cost effective, Warranty: One year.

Fast connecting and repeat, No special tools needed when installed.

Can be made on-site without splicing connectors.

Eliminates cable excess length and pigtail splice storage.

Can be intalled and maked repeatedly thus avoiding loss.

Applications

Patch panels

Distribution frames

Maintenance or emergency restoration of fiber networks

FTTH Outlets

Connection at the desk for LAN environments

Fiber Optic Patch Cord & Pigtail

Telecommunication Devices

Data Communications Networks

Optical Fiber LAN and Access Network

Industry and Military Applications

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB
