1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails

1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails
1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails

Large Image :  1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Detailed Product Description
Material: Polymer Synthetic Plastic Max Capacity: 2
Adapter Port: SC/FC Color: White
Application: Indoor Wall Mounted Product Name: Fiber Optic Distribution Box Patch Cord Box
High Light:

fiber optic junction box

,

optical network terminal box

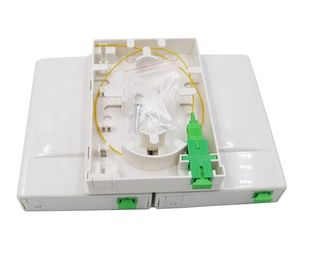

Fiber optic faceplate, 1 in 1 out mini FTTH Socket Panel box, load with SC APC adapter and pigtails



This fiber optic faceplate terminal box are used in the end termination in residence.to be fixed with pigtails,Wall mounting is avalaible.It can adapt variety of optical connections


FEATURES
Small size and light weight for easy installation compact body.
Easy installations: Ready for wall mount – installation kits provided.
Lower layer for splicing .
Upper layer for cross-connecting and fiber distribution.
Fully stable adapter panel, no risk of movement.
Fiber can get in from bottom or side

APPLICATION
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks





1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 01 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 1



Specification:

Type Socket Panle-B Socket Panle-C Socket Panle-D Socket Panle-E Socket Panle-F
Size 86*86*23 86*96*23 90*120*25 80*100*23 86*86*26
Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm
Cable port 2 2 2 2 3
Max capacity of splice 2 2 1 4 1

 1 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 21 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 31 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 41 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 51 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 61 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 71 In 1 Out Mini FTTH Fiber Optic Terminal Box With SC APC Adapter / Pigtails 8
