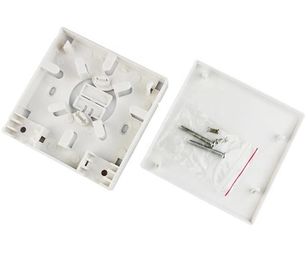

Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel

Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel
Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel

Large Image :  Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Detailed Product Description
Material: ABS Max Capacity: 2
Adapter Port: SC/FC/LC Color: White
Application: Indoor Wall Mounted Product Name: Fiber Optic Distribution Box Patch Cord Box
High Light:

fiber optic junction box

,

optical network terminal box

2 port mini FTTH faceplate socket panel, 86 type wall fiber optic outlet box, Made of high quality ABS, anti-collision



This is a common terminal product in FTTH solutions. Easy Operation, fasten the cable safely. It has many functions, insert a variety cables by so many ways, and firmly fixed optical fiber and optical cable, pull off force exceed 50N, will not cause damage to the fiber, protect the fiber reduce the risk of potential damage, complete the access and port output of the fiber, also no extra insertion loss.


FEATURES
Size: 86mm×86mm×24mm, compatible with power faceplate, easy installation. With dustproof shutter doors.
Made of high quality ABS, anti-collision, flame retardant, resistance to impact. All the materials complied with ROHS standard.
Convenient press-pull button lock design greatly reduced installation strength. With reasonable interior space design, allowed redundant fiber storage, With good fiber bending radius protection, and protection of input and output optical cable.
Interface fit for a variety of adapters and connectors, Simplex FC, SC, ST or duplex LC.
Fit for all kinds of fiber optic cable installation operation, fusion splicing, mechanical splicing and FMC are available,and provides fixed and protection for optical fiber connection.
Remarkable laser warning identification.

APPLICATION
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks





Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel 0Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel 1



Specification:

Type Socket Panle-B Socket Panle-C Socket Panle-D Socket Panle-E Socket Panle-F
Size 86*86*23 86*96*23 90*120*25 80*100*23 86*86*26
Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm
Cable port 2 2 2 2 3
Max capacity of splice 2 2 1 4 1

 Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel 2Anti Collision Fiber Optic Termination Box 2 Port Mini FTTH Faceplate Socket Panel 3
