Product Details:
Payment & Shipping Terms:
|
| Connector: | Waterproof ODC | Fiber Count: | 2/4 |
|---|---|---|---|
| Jacket: | Blue/black TPU | Waterproof Grade: | IP68 |
| Fiber Mode: | SM/MM | Application: | FTTA |
| Fiber: | G657A | Cable Diameter: | 5.0/7.0mm |
| High Light: | waterproof cable assembly,fiber optic connector assembly |
||

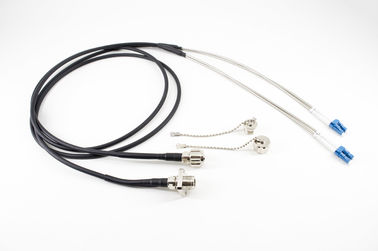

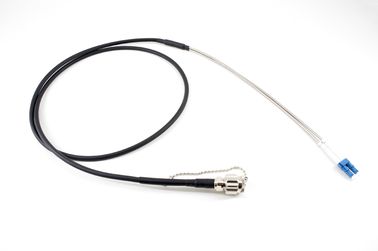

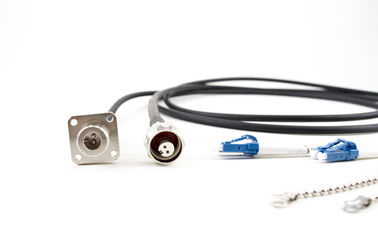

IP68 Waterproof ODC to LC 2 core or 4 core outdoor cable assembly,singlemode G657A 5.0/7.0mm GYFJH black LSZH/TPU
ODC connectors are designed for the fiber to antenna (FTTA) applications. The ODC product range incorporates precision-machined rugged brass housings with two or four optical terminations in both single mode and multimode fibers. The environmentally sealed, fixed and free connectors are supported by a range of highly crush resistant, high tensile strength “tactical” style cables.ODC fiber optic connector can withstand harsh environmental conditions when being used in outdoor applications. They are used for data and telecommunications in mobile radio, process, utility and traffic automation.
Features
2fibers,4fibers,singlemode or multimode
Compact design with 2×1.25mm ferrules
Built-in socket with square or hexagonal flange
Extension connector for cable chaining
Screwed locking mechanism
Easy and safe installation
Water proof,dust proof and corrosion resistant
Water proof protection caps
Application
Naval and ship building
Surveillance systems
Oil field, mine communication connection
Military communication equipment
Parameters
