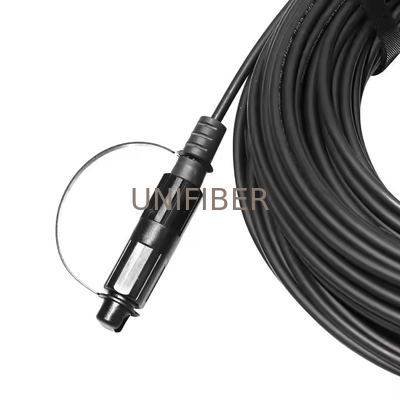

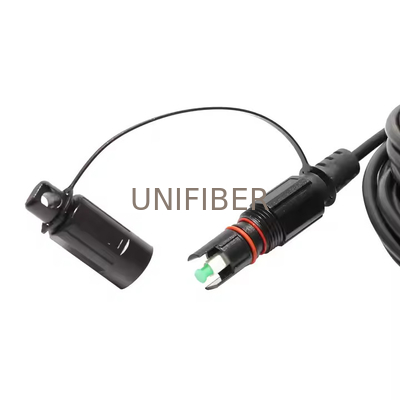

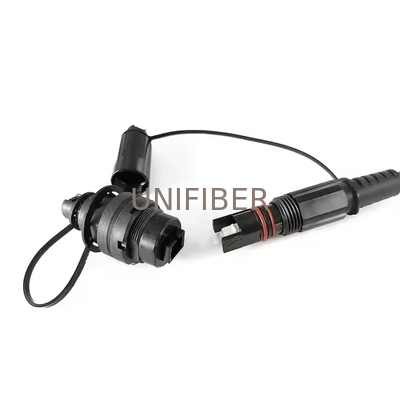

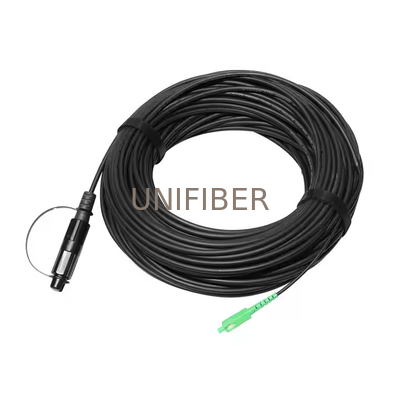

IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M

IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M
IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M

Large Image :  IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: OptiTap Fiber Drop Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 100pcs/day
Contact Now
Detailed Product Description
Product: FTTH OptiTap Drop Cable Connector: SC/APC
Fiber: G657A2 Cable Diameter: 5.0mm
Cable Length: 50M 100M 150M Application: Fttx

H-Connector assemblies provide a robust and sealed connection solution for FTTH connectivity. It designed to support maximum density, durability and performance in outdoor FTTx deployments. The H-Connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables. The factory terminated connectors reduce installation time, provide the highest performance available and have the only hardened mating surface in the industry. The H-Connector provides an ideal solution for direct burial, conduit, or aerial installations.

Features

Compatible with Corning-OptiTap and H-Connector;
Factory terminated for high performance;
Available with one or both ends connectorized;
Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
Available in dielectric or toneable;
Designed for aerial, direct-buried or duct installation;
IP-68 water and dust protection ;
. -40℃~85℃ operating temperature;

Applications

FTTH
Outdoor Areas Harsh Environment

Specification
Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃
IP68 Outdoor Hardened H-Connector OptiTap Drop Cable SC/APC-SC/APC G657A2 50M 100M 150M 0


Tag:

waterproof cable assembly,

fiber optic connector assembly,

fiber optic cable assembly
