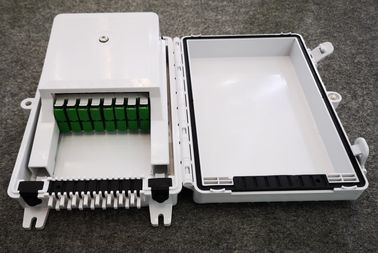

ABS PC 16 Core Anti UV FTTH Fiber Access Terminal Box

FTTH Fiber Access Terminal box 16 core fibra optical distribution box Anti-UV, anti-impact and waterproof

This product integrates the optical fiber splicing, splitting and wiring. It can realize the cable direct or branch connection and is suitable for client's terminal access. Connecting with the optical communication equipment, through the adapter installed in the box, the drop cable leads the signal out and achieves optical fiber distribution; also it applies to the protective connection of cables and pigtails; in addition, optical cable can be spliced with home cable after splitting, to achieve signal transmission.

Applications:
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit

The telecommunication network, metropolitan area network, optical fiber communication system.

Features
Anti-UV, anti-impact and waterproof;
Wall or pole mounted;

Made of high quality and impact resistant plastics;
Accommodates 1:8splitter ( 2 pcs) or 1:16PLC splitter (1pc);

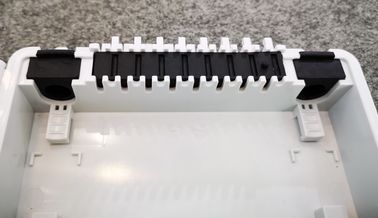

The toothed slots at the outlet can hold outgoing fibers, which avoids loosening or falling off by external force;
The box body has two opened-type inlets, which realizes operation without breaking the cable.;
The structural design of bottom box, reversible plate and inner cover make the cable inlet and outlet, fiber splicing area and fiber storage area form a closed and independent partition, which is conducive to manage and maintain.
