Product Details:
Payment & Shipping Terms:
|
| Material: | ABS Plastic | Max Capacity: | 2 Port |
|---|---|---|---|
| Application: | FTTH Access Network | Performance: | Anti-UV, Ultra Violet Resistant And Rainfall Resistant |
| Product Name: | Fiber Optic Termination Box | Color: | Gray,White |
| Highlight: | fiber optic junction box,optical network terminal box |
||

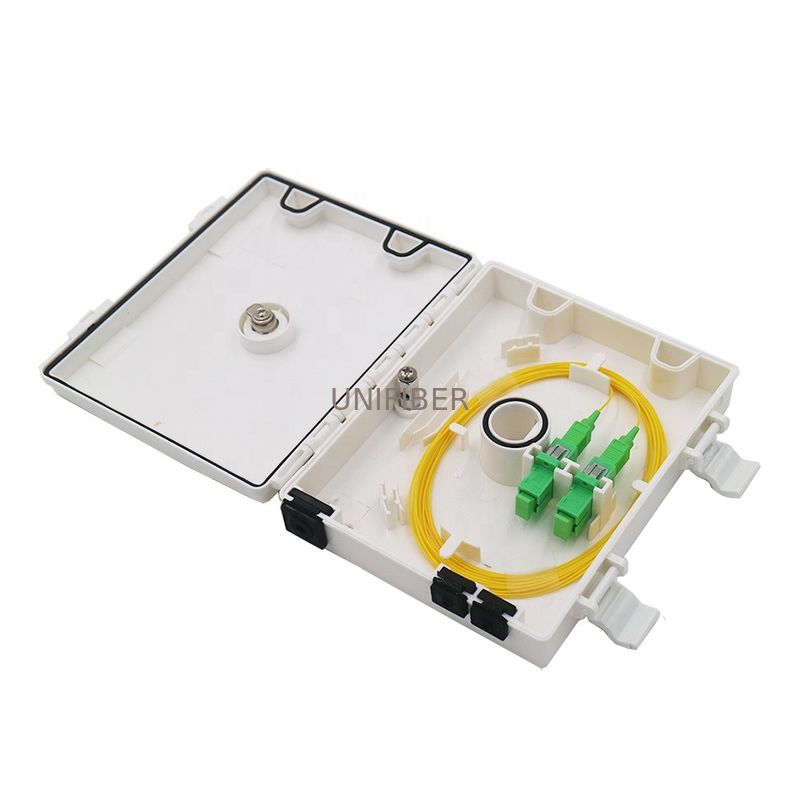

Mini Size FTTH wall mounted fiber distribution enclosure box 2 ports fully loaded with SC APC adapter and pigtails
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
Wall-mounted optical fiber distribution box for indoor applications
Place for fiber reserve up to 30 m
Removable cable reel
Can Install SC Simplex adapter
Closed with two latches, seal
Ease of installation, operation and maintenance
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
Specifications:
| Type | Size | N.W (kg/pcs) |
| 2 port | 172mm(H)*136mm(W)*42mm(D) | 0.30 |
