Product Details:
Payment & Shipping Terms:
|
| Material: | ABS Plastic | Storage Length: | 20-30m |
|---|---|---|---|
| Application: | FTTH Access Network | Performance: | Anti-UV, Ultra Violet Resistant And Rainfall Resistant |
| Product Name: | Fiber Optic Termination Box | Color: | Gray,White |
| High Light: | fiber optic junction box,optical network terminal box |
||

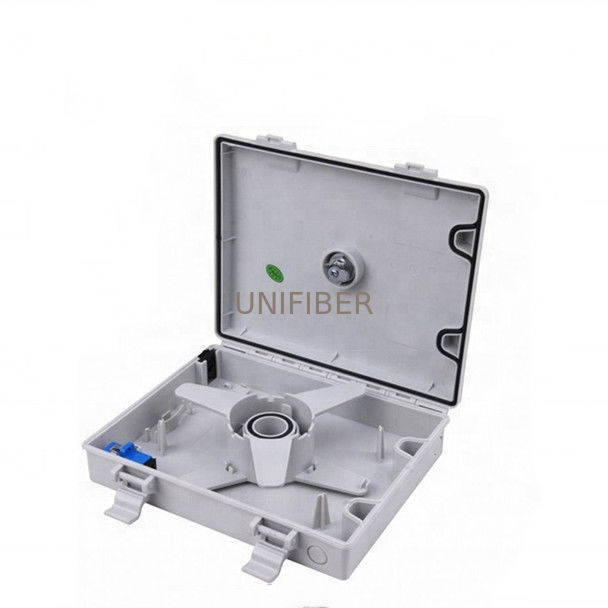

Small size FTTH wall mounted indoor cable coiling box cable storage box with removable cable reel up to 30 meters
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Application:
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks Data communications Networks
Local Area Networks
Features:
Can Install SC Simplex adapter
Closed with two latches, seal
Ease of installation, operation and maintenance
Wall-mounted optical fiber distribution box for indoor applications
Place for fiber reserve up to 30 m
Removable cable reel
Specifications:
| Type | Size | N.W (kg/pcs) |
| 2 port | 172mm(H)*136mm(W)*42mm(D) | 0.30 |
