Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 850nm | Data Rate: | 10G SFP+ |
|---|---|---|---|
| Interface: | LC | Transmission Distance: | 300M |
| Compatiable: | HP, Huawei, H3C, Alcatel, Juniper Or Others | Fiber: | Dual Fiber |
| Certification: | CE RoHS FCC | Brands: | Can Be Customized |
| Highlight: | Multimode Sfp Transceiver,850nm Fiber Ethernet Transceiver |
||

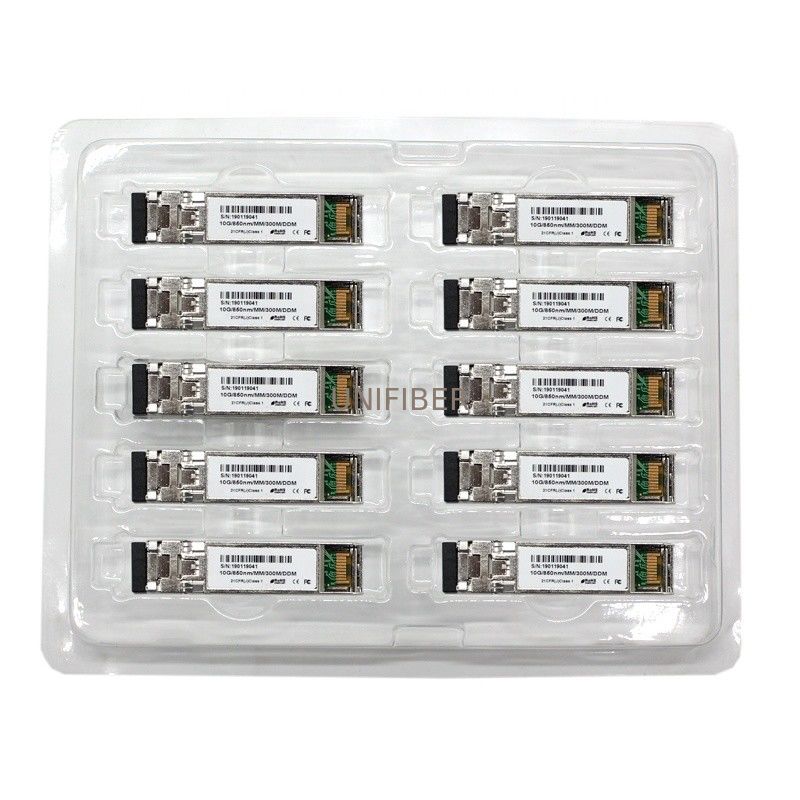

10G SFP+ dual fiber LC multimode 850nm 300m SR optical transceiver module
10Gigabit SFP+ transceiver is designed to transmit and receive optical data over MMF/SMF . The SFP+ module electrical interface is compliant to SFI electrical specifications.
FEATURES :
Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
Hot Pluggable Other optical links
Low power consumption
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
APPLICATIONS :
Switch to Switch interface
Switched backplane applications
Router/Server interface
Fiber Channel
Ordering Information:
| Data Rate | distance | wavelength | LD | PD | Connector | DDM |
| 10G | 40km | 1550nm | EML | PIN | LC | Y |
| 10G | 10km | 1310nm | DFB | PIN | LC | Y |
| 10G | 80km | 855nm | VCSEL | PIN | LC | Y |
| 10G | 80km | 1550nm | EML | APD | LC | Y |
