| Wavelength: | 1270/1330nm | Data Rate: | 10G XFP Bidi |
|---|---|---|---|
| Interface: | LC | Transmission Distance: | 80KM |
| Compatiable: | HP, Huawei, H3C, Alcatel, Juniper Or Others | Fiber: | Single Fiber |
| Certification: | CE RoHS FCC | Brands: | Can Be Customized |
| Highlight: | 10G LC Fibre Transceiver,80KM Optical Fiber Transceiver |
||

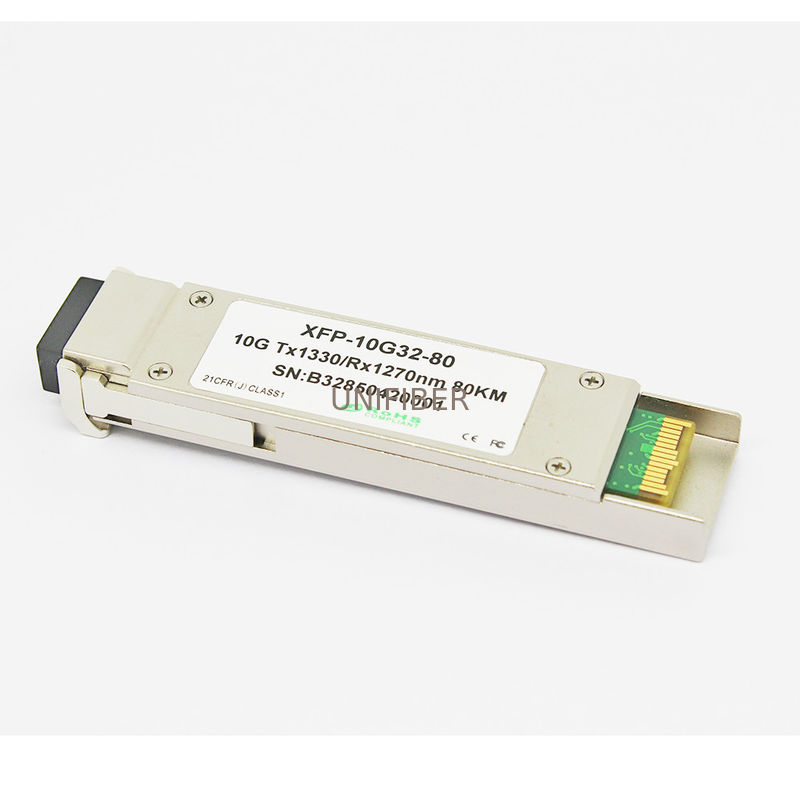

10G XFP BIDI Tx1330nm/Rx1270nm 80km Optical transceiver
XFP module is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 80km on SMF The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high Page 2 of 9 Feb 27/2013 port densities for 10 GbE systems.
FEATURES :
XFP MSA package with duplex LC connector
Very low EMI and excellent ESD protection
Hot-pluggable XFP footprint
+3.3V single power supply
Temperature range 0°C to 70°C
APPLICATIONS :
Switch to Switch interface
Switched backplane applications
Router/Server interface
Fiber Channel
Ordering Information:
| Data Rate | distance | wavelength | LD | PD | Connector | DDM |
| 10G | 20km | T1270/R1330 | DFB | PIN | LC | Y |
| 10G | 20km | T1330/R1270 | DFB | PIN | LC | Y/N |
