Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1310nm Or 1550nm | Data Rate: | 10G XFP Dual Fiber |
|---|---|---|---|
| Interface: | LC | Transmission Distance: | 10km/40km/80km |
| Compatiable: | HP, Huawei, H3C, Alcatel, Juniper Or Others | Fiber: | Dual Fiber |
| Certification: | CE RoHS FCC | Brands: | Can Be Customized |
| High Light: | LC Optical Fiber Transceiver,10G Fiber Transceiver Module |
||

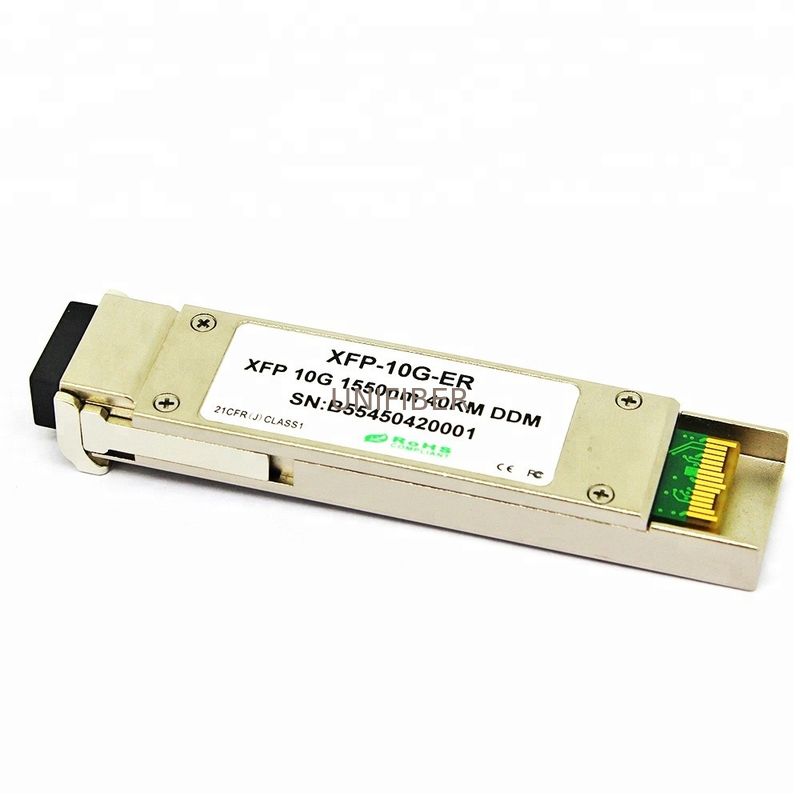

10G XFP transceiver module dual fiber 1310nm or 1550nm with 10km/40km/80km transmission distance
XFP Transceivers are Small Form Factor 10Gbps (XFP) transceivers and compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and leads free per Directive 2002/95/EC3.
FEATURES :
Supports 9.95Gbps to 11.1Gbps bit rates
link length up to 80km
Cooled 1550 nm EML and APD receiver
XFP MSA Rev 4.5 Compliant
Very low EMI and excellent ESD protection
High transmission margin
+3.3V single power supply
Below <2W power consumption
Temperature range 0°C to 70°C
APPLICATIONS :
SONET OC-192&SDH STM 64
10GBASE ZR/ZW
10G Fiber Channel
Ordering Information:
| Data Rate | distance | wavelength | LD | PD | Connector | DDM |
| 10G | 10km | 1310nm | DFB | PIN | LC | Y |
| 10G | 40km | 1550nm | EML | PIN | LC | Y |
| 10G | 300m | 850nm | VCSEL | PIN | LC | Y |
| 10G | 80km | 1550nm | EML | PIN | LC | Y |
