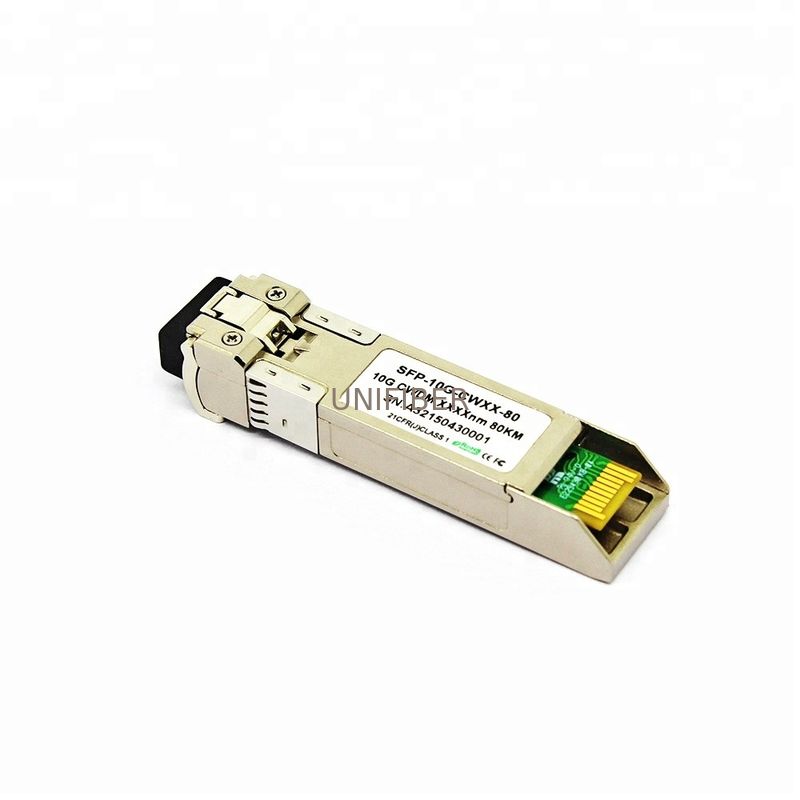

1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver

1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver
1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver 1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver 1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver

Large Image :  1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 10G SFP+ CWDM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Wavelength: 1270nm~1610nm Data Rate: 10G SFP+
Interface: LC Transmission Distance: 40km 80km
Compatiable: HP, Huawei, H3C, Alcatel, Juniper Or Others Fiber: Dual Fiber
Certification: CE RoHS FCC Brands: Can Be Customized
High Light:

10G Sfp Fiber Transceiver

,

DDM Fiber Ethernet Transceiver

10GBASE CWDM SFP+ Optical Transceiver 1270nm~1610nm 40km 80km DDM

CWDM SFP+ transceiver is designed for SMF and operates at a nominal wavelength of CWDM wavelength. The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.





FEATURES :

Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
Specifications compliant with SFF 8472
Hot Pluggable
Low power consumption
All-metal housing for superior EMI performance
Single +3.3v power supply
Support Digital Diagnostic Monitoring Interface
Case operating temperature range: 0°C to 70°C
RoHS 6 compliant and lead free
Satisfy Class I safty requrement






APPLICATIONS :

10GBASE Ethernet, Fiber Channel

High-speed Storage Area Networks, SAN Fiber Channel

Computer Cluster Cross-connect

Custom High-speed Data Pipes





Ordering Information:

Data Rate distance wavelength LD PD Connector DDM
10G 40km CWDM(1270-1330nm) DFB PIN LC Y
10G 80km CWDM(1470-1610nm) EML APD LC Y



1270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver 01270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver 11270~1610nm 10GBASE DDM CWDM SFP+ Optical Transceiver 2
