Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 850nm | Data Rate: | 40G |
|---|---|---|---|
| Transmission Distance: | 400M | Interface: | MPO |
| Certification: | CE RoHS FCC | Brand: | Can Be Customized |
| High Light: | 40G Sfp Transceiver,400M Optical Fiber Transceiver |
||

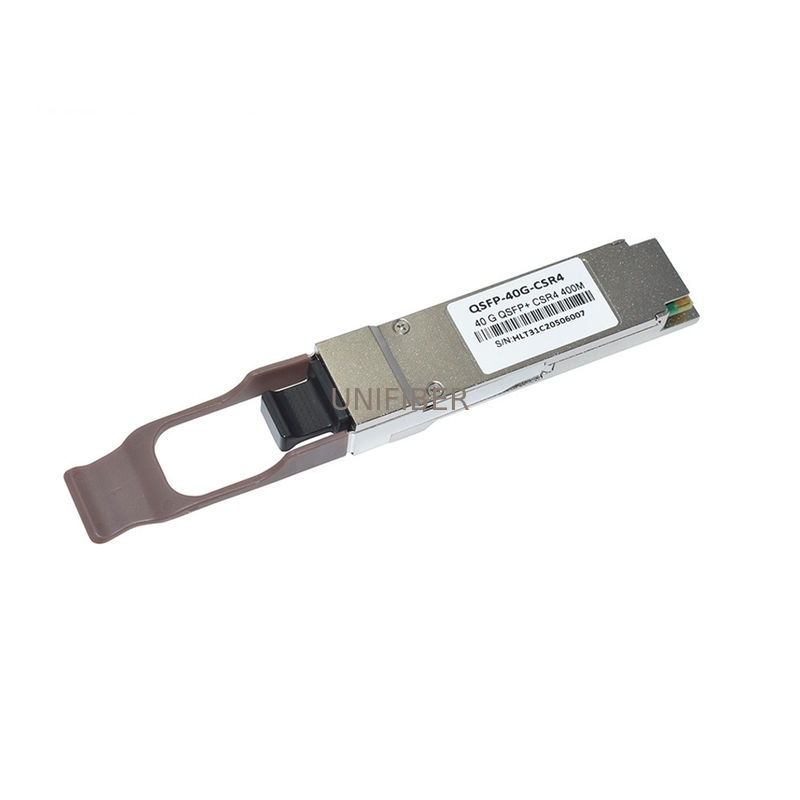

40G QSFP+ CSR4 MMF 850nm 400M OM4 multimode fiber transceiver
40G QSFP+ transceivers include SR4, eSR4, LX4, LR4 Lite, IR4 PSM, LR4 PSM, LR4, ER4 and BiDi series.
Features :
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 400m transmission on OM4 multi-mode ribbon fiber
Single +3.3V power supply
Operating case temperature:0~70C
Maximum 1.5W operation power
RoHS-6 compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA:SFF-8436
Applications :
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
| ordering information | |
| Part Number | Product Description |
| QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| QSFP-40G-CSR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 300M/400M |
| QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| QSFP-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
