5G Telecom ODVA MPO Connector Optical Distribution Enclosure

5G telecom FTTA ODVA/MPO waterproof connector distribution enclosure box Pole mounting

IP65 FTTH distribution box with pre connect mini-sc adapter matching Huawei deviceThis is Distibution box it is used for FTTH fiber distribution design Pre connect MINI SC adapter based on different clients request it can open 4/6/8/12/24 port for our clients .With IP65 grade outdoor use .

Details:

Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MTP.

Insertion loss:SC/LC≤0.3dB ,MPT/MPO≤0.5dB,Return loss:≥50dB.

Tensile strength:> 50 N

Job stress: 70 kpa to 106 kpa;

Using the temperature:- 40 ~ + 75 ℃

Relative humidity: ≤85% (+ 30 ℃).

Protection grade: IP67

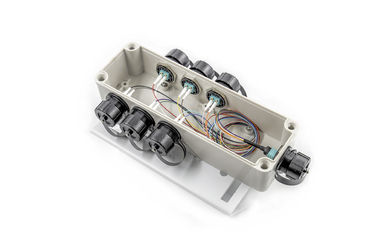

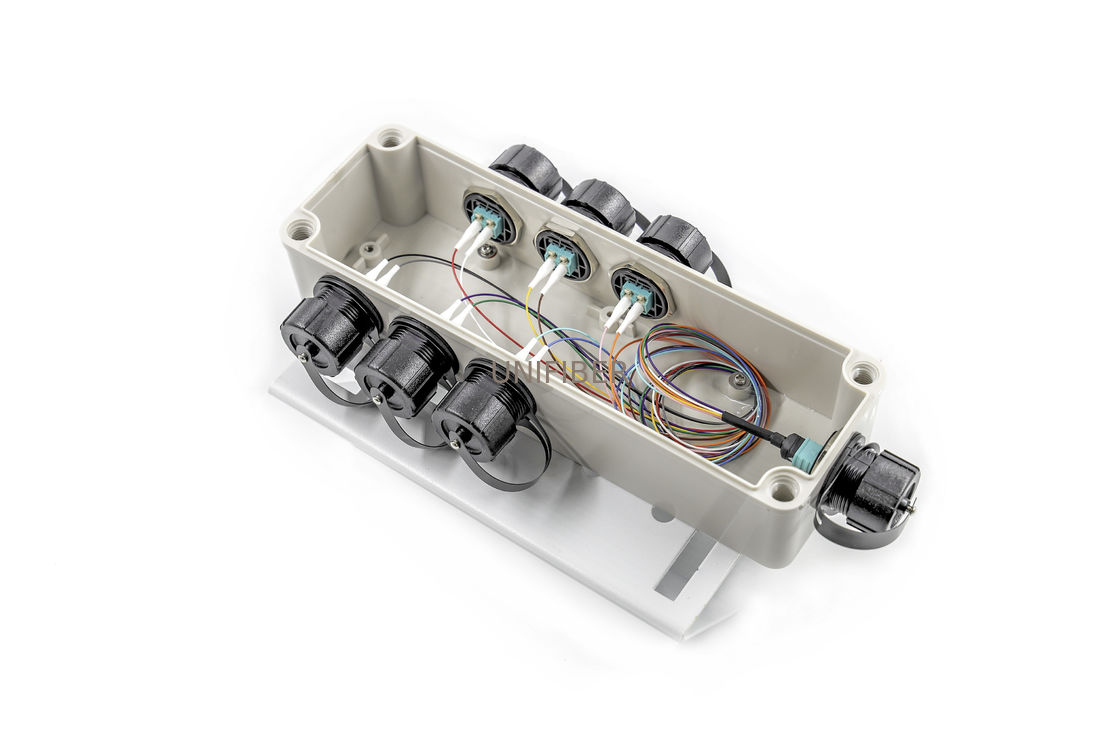

Internal inventory redundant optical fiber, convenient in operation and maintenance.

Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of

multi-storey and high-rise tenants,easy to install, easy to install.

Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with

standard of communication industry, flame retardant grade UL94V - level 0

Structure: open type

Color: grey (color can be customized)

Sealing way: TPE seals

Installation method: overhead, hanging.

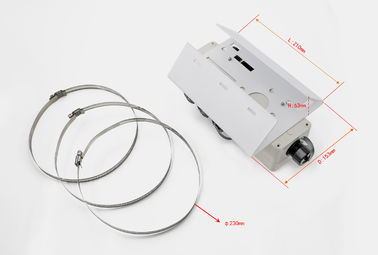

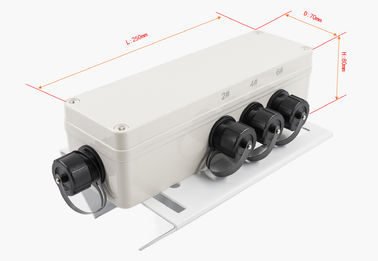

Size (H*W*D)mm : 250* 80*70mm

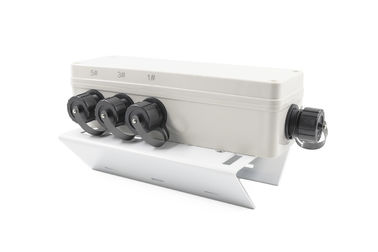

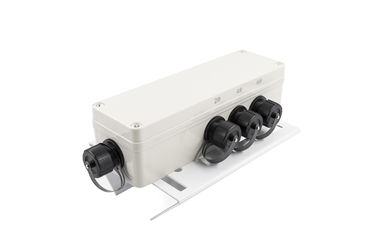

Detailed Images
