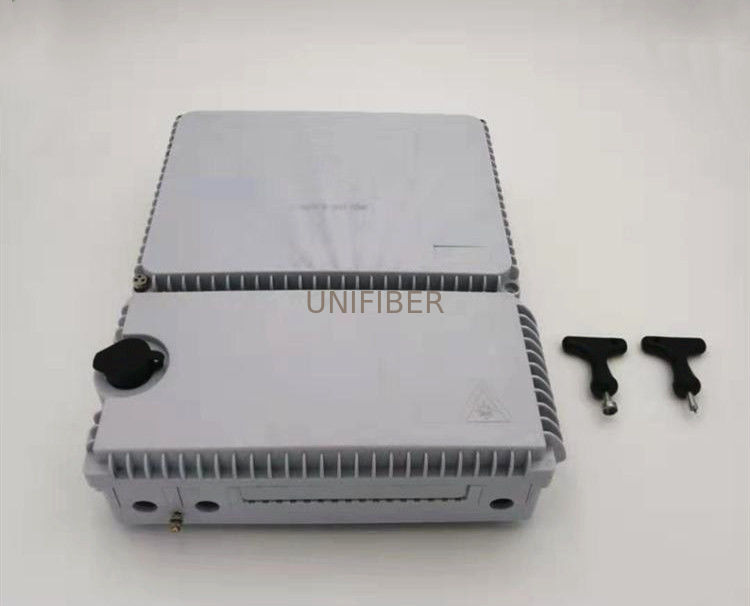

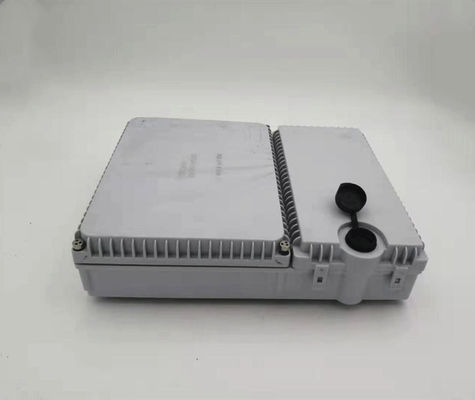

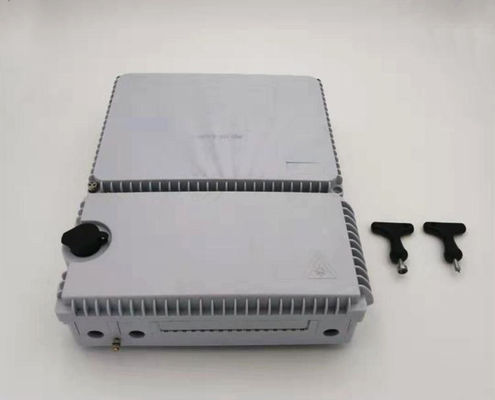

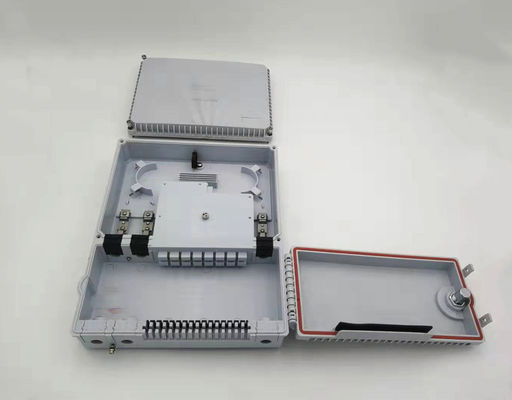

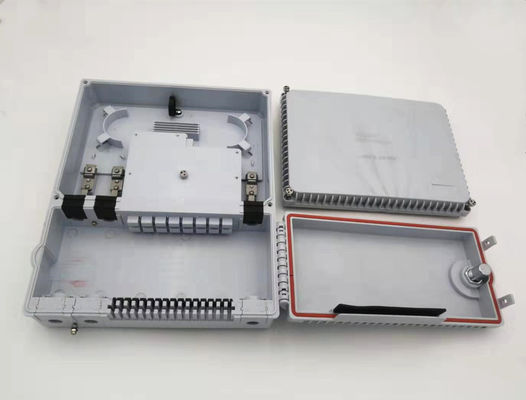

PDC ODP Optical Distribution Panel With Solid Splitter

PDC ODP Optical Distribution Panel With Solid Splitter
PDC ODP Optical Distribution Panel With Solid Splitter PDC ODP Optical Distribution Panel With Solid Splitter PDC ODP Optical Distribution Panel With Solid Splitter PDC ODP Optical Distribution Panel With Solid Splitter

Large Image :  PDC ODP Optical Distribution Panel With Solid Splitter

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: OTB0816
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: ABS Installation: Wall Mounting
Dimensions: 323X150X72mm Capacity: 8/16 Core
High Light:

ODP Fiber Optic Distribution Box

,

PDC Fiber Optic Termination Panel

PDC ODP Optical Distribution Panel with Solid Splitter 8 core 16 core

Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks. PDC ODP with Solid Splitter uses 8 to 16 core capacity SC/UPC and SC/APC, it can hold 2 pieces 1:8 Splitter to 1 piece 1:16 Splitter.ODP has two (2) input ports and 16 output ports on the bottom.ODP Solid Splitter Box can be installed on Poles, Walls and inside the Closure Pedestal. The ambient temperature ranges from -25°C to 65°C.



Features:

User familiar industry interface, using high impact plastic

Can accommodate two 1x8 splitters or one 1x16 splitter
Ultra violet resistant and rain resistant
Up to 16 FTTH drops
Wall and pole mountable
2 inlet capacity, 16 outlet capacity
Meets cable termination and sealing requirements



Specification

Outside dimension (LxWxH) 345x275x85 (mm)
Weight (excluding outside box) 2.3(kgs)
Number of inlet/outlet ports 3 ports on bottom side
Diameter of fiber cable Φ8—Φ15 (mm)

Maximum capacity

(number of connector ports)

8 port adaptor 1 Splitter 1:8
16 port adaptor 2 Splitter (2 x 1:8)



Accessaries

No.

Name of

components

Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole

Internal diameter:

345*293 (mm)

2 Splitter 1:8 8 port adaptor (1PCS) Terminal optical distribution 149*140*12(mm)
16 port adaptor (2PCS)
3 Fiber optic splice tray (FOST) 1pcs

Fixing heat shrinkable protective

sleeve and holding fibers

Suitable for:

Bunchy:12(cores)

4 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 1 pieces Sealing empty ports
6 Pressure testing valve 1 set After injecting air it is used for pressure testing and sealing testing Configuration as per requirement
7 Grounding lead-out device 1 set Cable grounding

PDC ODP Optical Distribution Panel With Solid Splitter 0
