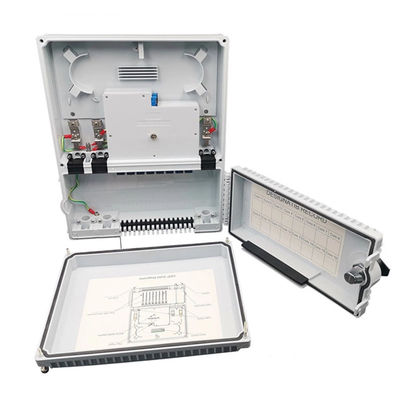

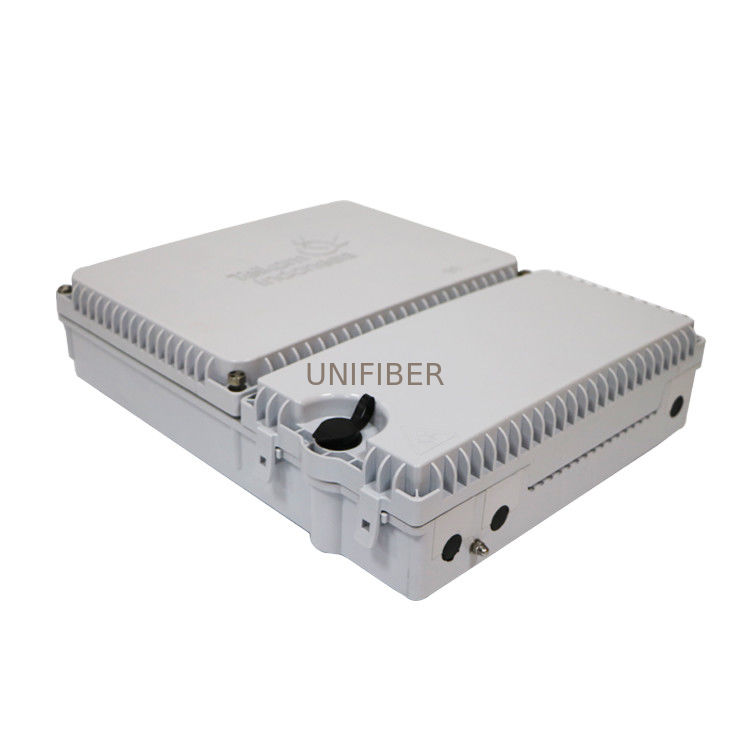

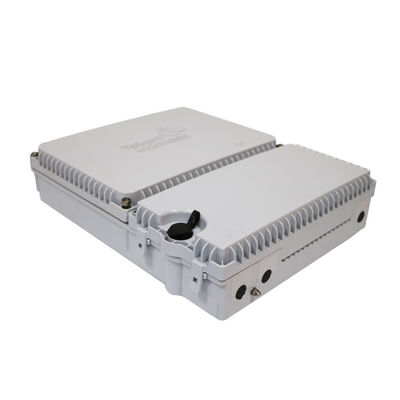

ABS 8/16 Core FTTH ODP Optical Fiber Termination Box

ABS 8/16 Core FTTH ODP Optical Fiber Termination Box
ABS 8/16 Core FTTH ODP Optical Fiber Termination Box ABS 8/16 Core FTTH ODP Optical Fiber Termination Box ABS 8/16 Core FTTH ODP Optical Fiber Termination Box ABS 8/16 Core FTTH ODP Optical Fiber Termination Box

Large Image :  ABS 8/16 Core FTTH ODP Optical Fiber Termination Box

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: OTB0816
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: ABS Installation: Wall Mounting
Dimensions: 323X150X72mm Capacity: 8/16 Core
High Light:

FTTH Optical Distribution Point Box

,

ODP Fiber Termination Cabinet

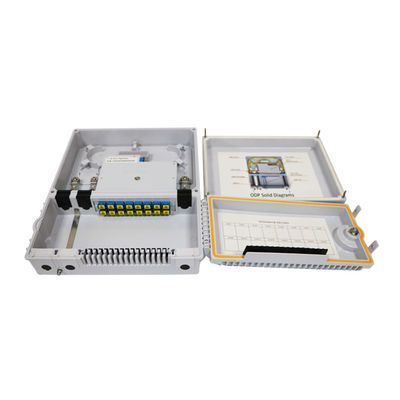

FTTH Optical distribution point (ODP) 8/16 core with solid splitter

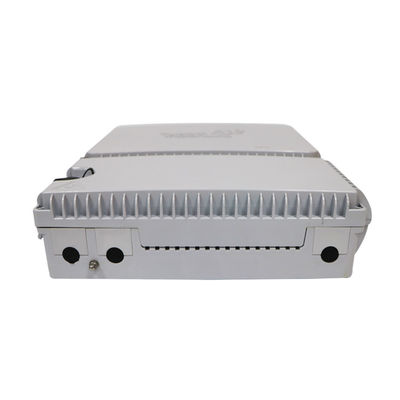

Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks. ODP has two (2) input ports and 16 output ports on the bottom and it is easy to install on the pole or wall.



Features:

Up to 16 FTTH drops
Wall and pole mountable
2 inlet capacity, 16 outlet capacity

Can accommodate two 1x8 splitters or one 1x16 splitter

User familiar industry interface, using high impact plastic
Ultra violet resistant and rain resistant
Meets cable termination and sealing requirements



Accessaries

No.

Name of

components

Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole

Internal diameter:

345*293 (mm)

2 Splitter 1:8 8 port adaptor (1PCS) Terminal optical distribution 149*140*12(mm)
16 port adaptor (2PCS)
3 Fiber optic splice tray (FOST) 1pcs

Fixing heat shrinkable protective

sleeve and holding fibers

Suitable for:

Bunchy:12(cores)

4 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 1 pieces Sealing empty ports
6 Pressure testing valve 1 set After injecting air it is used for pressure testing and sealing testing Configuration as per requirement
7 Grounding lead-out device 1 set Cable grounding



Specification

Outside dimension (LxWxH) 345x275x85 (mm)
Weight (excluding outside box) 2.3(kgs)
Number of inlet/outlet ports 3 ports on bottom side
Diameter of fiber cable Φ8—Φ15 (mm)

Maximum capacity

(number of connector ports)

8 port adaptor 1 Splitter 1:8
16 port adaptor 2 Splitter (2 x 1:8)
