Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 850nm | Data Rate: | 1.25G |
|---|---|---|---|
| Interface: | LC | Transmission Distance: | 550m |
| Compatiable: | HUAWEI,ZTE,Cisco,Nokia-alcatel Or Others | Fiber: | Single Fiber |
| Certification: | CE RoHS FCC | Brands: | Can Be Customized |
| High Light: | 850nm Optical Transceiver Module,1.25G Optical Transceiver Module,LC DDM SFP Fiber Transceiver |
||

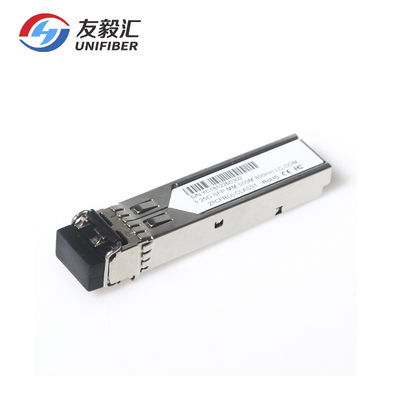

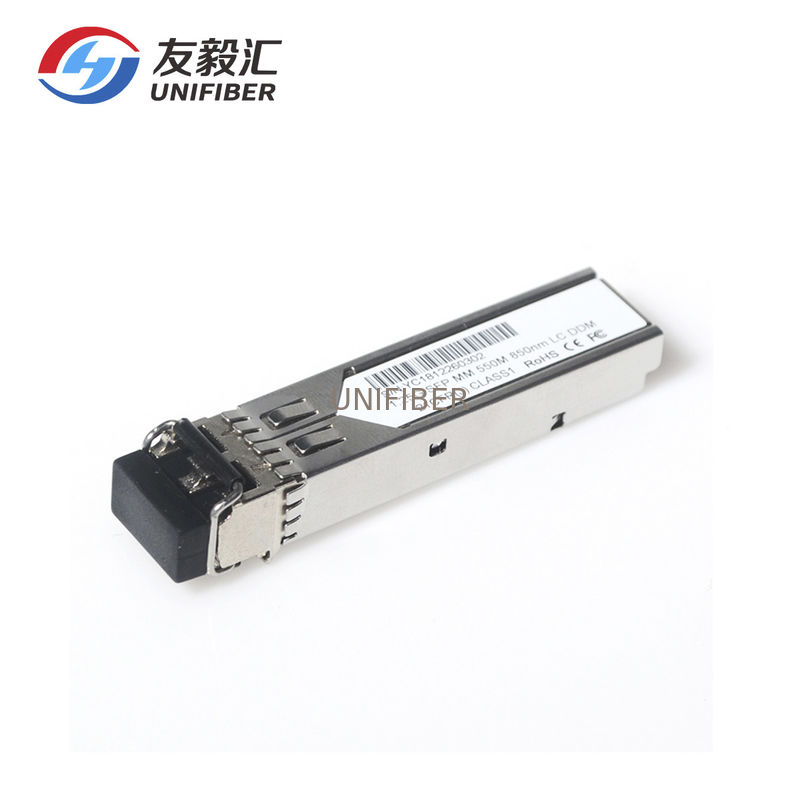

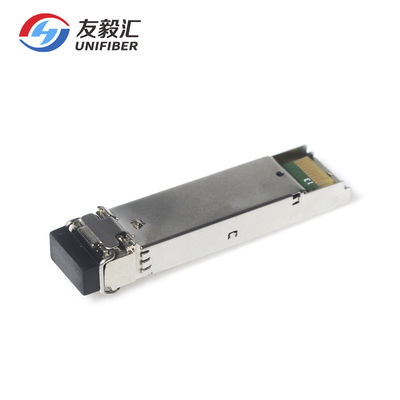

SFP 1.25G 850nm 550m Multimode Optical Transceiver Module LC DDM
The optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable. The optical transceiver is ROHS compliant, each of the components is lead-free.they are high performance, cost effective modules supporting data-rate of 155M-4.25Gbps and 300m-120km transmission distance.
FEATURES :
Data-rate of 155M-4.25Gbps
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature range of 0°C to +70°C(Commercial) or -40°C to +85°C (Industrial)
APPLICATIONS :
Switch to Switch interface
Switched backplane applications
Router/Server interface
Fiber Channel
Ordering Information:
| Data Rate | distance | wavelength | LD | PD | Connector | DDM |
| 1.25G | 20km | T1310/R1550 | FP | PIN | LC/SC | Y/N |
| 1.25G | 120km | T1490/R1550 | DFB | APD | LC | Y |
| 1.25G | 20km | T1550/R1310 | DFB | FP | LC/SC | Y/N |
| 2.5G | 80km | T1550/R1490 | DFB | APD | LC | Y |
| 2.5G | 20km | T1310/R1550 | DFB | FP | LC/SC | Y/N |
| 2.5G | 20km | T1550/R1310 | DFB | PIN | LC/SC | Y/N |
| 2.5G | 40km | T1490/R1550 | DFB | PIN | LC/SC | Y/N |
| 2.5G | 40km | T1550/R1490 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 40km | T1550/R1310 | DFB | PIN | LC/SC | Y/N |
| 155M | 20km | T1310/R1550 | FP | PIN | LC/SC | Y/N |
| 155M | 20km | T1550/R1490 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 20km | T1490/R1310 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 40km | T1310/R1550 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 20km | T1310/R1490 | FP | PIN | LC/SC | Y/N |
| 2.5G | 80km | T1490/R1550 | DFB | APD | LC | Y |
| 155M | 20km | T1310/R1490 | FP | PIN | LC/SC | Y/N |
| 1.25G | 80km | T1550/R1310 | DFB | APD | LC | Y/N |
| 155M | 60km | T1550/R1310 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 40km | T1310/R1490 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 80km | T1490/R1550 | DFB | PIN | LC | Y/N |
| 155M | 40km | T1490/R1310 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 120km | T1550/R1490 | DFB | PIN | LC | Y |
| 155M | 120km | T1490/R1550 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 80km | T1310/R1550 | DFB | APD | LC | Y/N |
| 1.25G | 80km | T1550/R1490 | DFB | APD | LC | Y/N |
