Fiber Ports: | 24 Ports | Material: | ABS Or PC |
---|---|---|---|
Protective Level: | IP65 | Dimension: | 260mm(W)x320mm(D)x90mm(D) |
Color: | White | Application: | FTTH FTTB FTTX Network |
High Light: | IP65 Outdoor Fiber Optic Enclosure,FTTH Outdoor Fiber Optic Enclosure,ABS FTTH Optical Terminal Box |

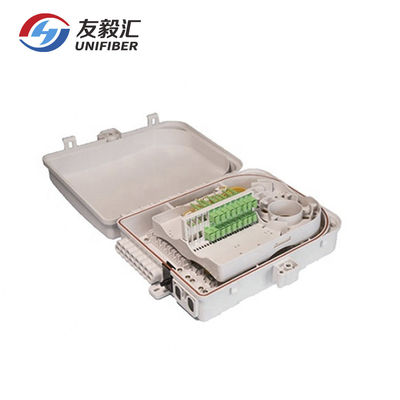

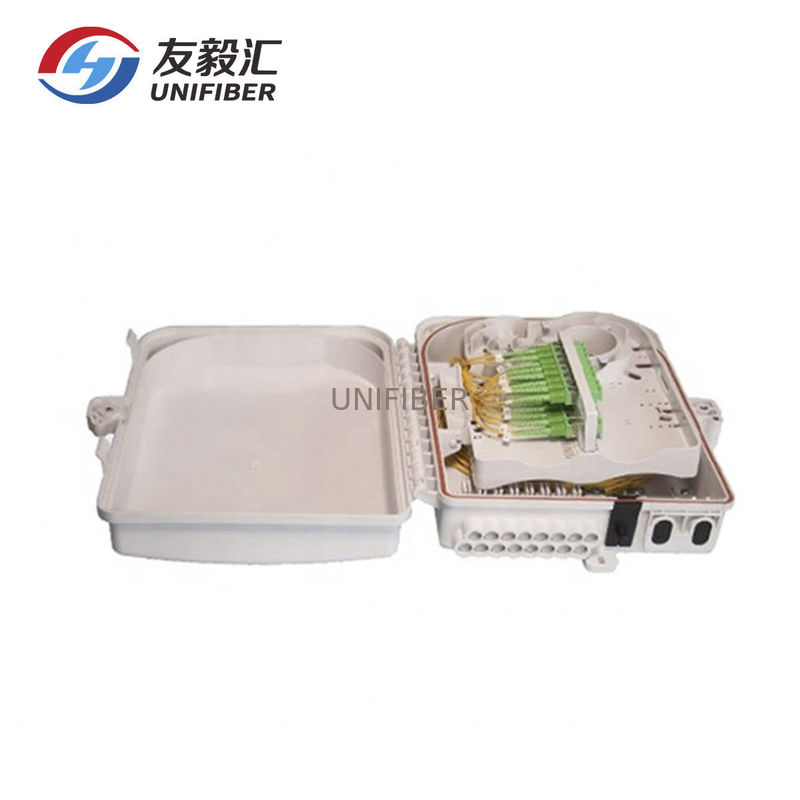

24 core outdoor fiber optic enclosure, Optical Terminal Box Up to 24 FTTH drops,ultra violet resistant
FDB series are applicable in FTTH project; Suitable for corridor, basement, room and building's outer walls application; It may distribute cables after installed splitters, it also may draw out room fiber optic cables by direct or cross –connections. It is with the function of mechanical splice, fusion splice, light splitting, wiring distributions
Features:
Industry standard user interface
be made of high impact plastic
Anti-UV, ultra violet resistant and rainfall resistant
Up to 16 FTTH drops
Wall mounted and pole mounted
2 inlet ports, 16outlet ports
Application
Telecommunication Networks
FTTX access network.
CATV Networks
Data communications Networks
Specification
Model | Capacity | Size |
FDB0224 | 24port | 260mm(W)x320mm(D)x90mm(D) |
