24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

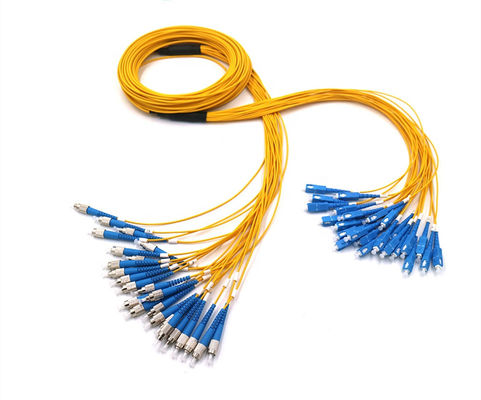

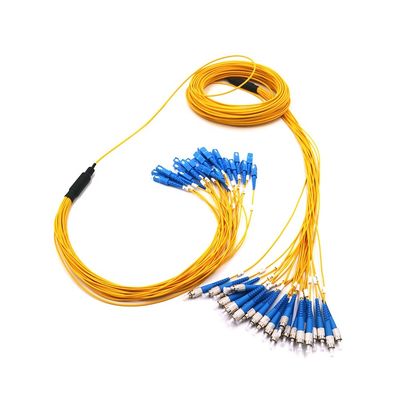

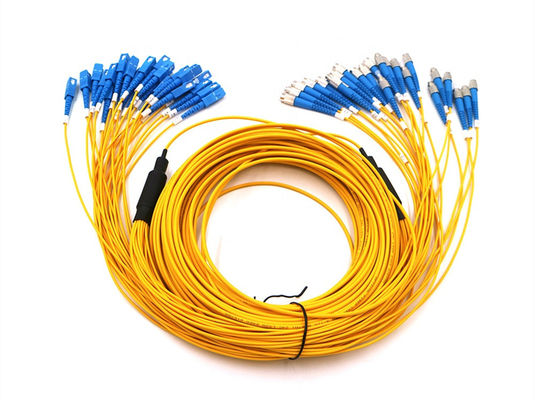

24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord

24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord
24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord 24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord 24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord

Large Image :  24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord

Product Details:
Place of Origin: China
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 4/6/8/12/24/48 fibers
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Connector Type: LC/SC/ST/FC Cable Jacket: PVC/LSZH/OFNP
Fiber Count: 4/6/8/12/24 Fibers Breakout Diameter: 0.9/2.0/3.0mm
Trunk Diameter: 7.0-8.0mm/4.6-5.0mm Fan-out Length: 0.3/0.5m Or Customized
Key Words: Custom Pre Terminated Multi Fiber Cable Fiber Mode: SM/MM/OM3/OM4/OM5
High Light:

OM3 Pre Terminated Patch Cord

,

LSZH Pre Terminated Patch Cord

,

SC Upc To FC Upc Optical Cable

China Supplier Pre terminated multi fiber cable 24 core Single mode SC upc to FC upc patch cord

Indoor multi-fiber breakout patch cord cable are used to provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.It come as 4~144core with LC/SC/FC/ST connectors and 0.9, 2.0, 3.0 break-out leg.





Features

Low insertion loss and high reflection loss

4-48 core 0.9, 2.0, 3.0 break-out leg available

Quick & easy installation without special skills, reducing installation time.

Various connectors are available - LC/SC/FC/ST

Protect the connectors and prevent the cable from twisting during the pull.





Applications

High density cable wiring system

Local/wide area networks

High integrated equiement and devices

Switching between trunk line and distribution line





Specifications

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp. -40 to +85



24 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord 024 Core SC Upc To FC Upc LSZH OM3 Pre Terminated Patch Cord 1
