Connector Type: | SC/APC SC/UPC | Color: | Green |
---|---|---|---|
Durability: | >500 Times | Operation Temperature: | -40~+75°C |
Product: | SC Quick Connector,Optical Fast Connector | Applicable For: | 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
High Light: | SC/UPC Field Assembly Optical Connector,900um Field Assembly Optical Connector,3.0mm Cable SC Quick Connector |
FTTH Field Assembly Connector SC/APC, China Fiber Quick Connector manufactures

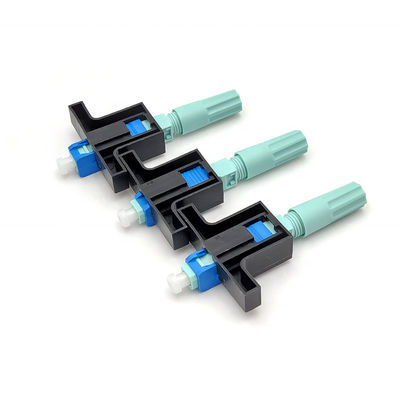

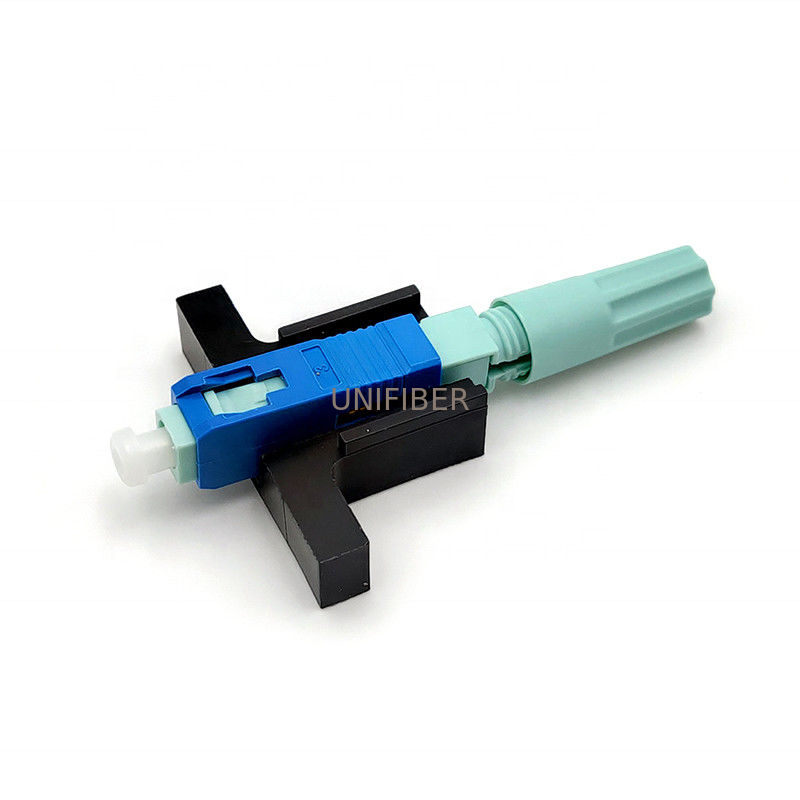

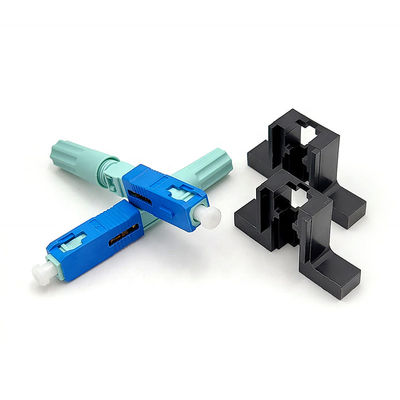

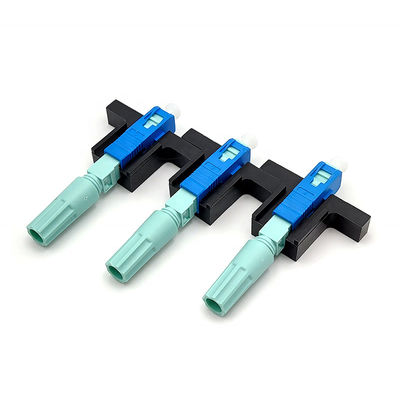

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mmx3.0mm cable diameter.
Features
Reliable, durability over 500 times mating
Easily installed, Quick and easy fiber termination in the field.
Can be intalled and maked repeatedly thus avoiding loss.Factory-installed fiber stub.
Fast connecting and repeat, No special tools needed when installed.
No epoxy and polishing required, No special tools needed when installed.
FTTH & FTTx;
Broadband, CATV.
Passive Optical Networks
