Product Details:
Payment & Shipping Terms:
|
| Connector Type: | SC/APC SC/UPC | Color: | Green |
|---|---|---|---|
| Durability: | >500 Times | Operation Temperature: | -40~+75°C |
| Product: | LC/UPC Fiber Optic Quick Connectors | Applicable For: | 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Highlight: | FTTH Fiber Optic Quick Connectors,LC/UPC Fiber Optic Quick Connectors,3.0mm Cable Lc Fiber Connector |
||

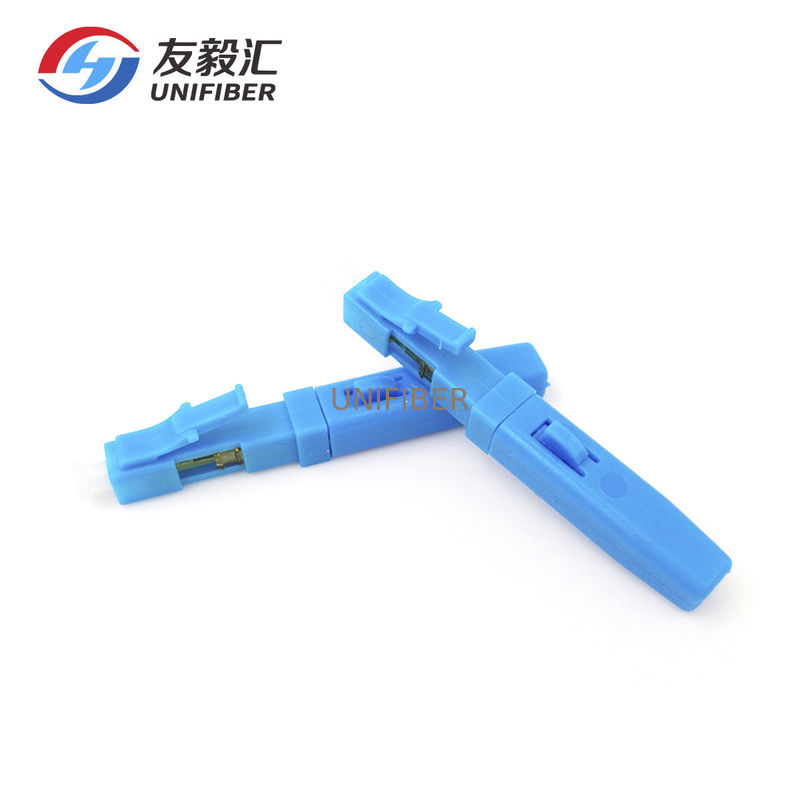

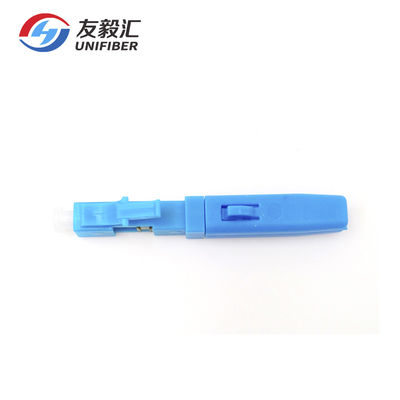

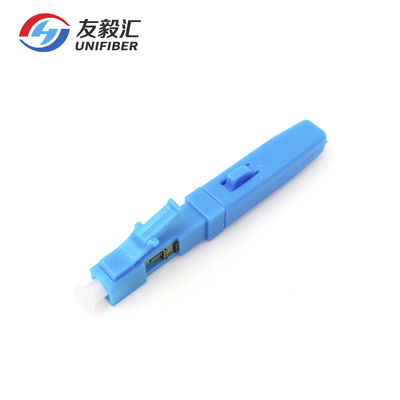

FTTH Fiber Optic Fast Connector LC/UPC Fiber Optic Quick Connectors
This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mmx3.0mm cable diameter.
Features:
FTTH project usable
Field installable
Insert loss less than 0.2dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minutes
Reliable and superior optical performance
Cable Tensile test complies with Telcordia GR-326-CORE
Application:
Telecome network
CATV network
Ethernet network
Optic communication Equipment
| Item | Technical Parameters |
| Suitable Cable OD | 2.0mm, 3.0mm, 0.9mm |
| Optical fiber diameter | 125μm |
| Tight buffer diameter (μm) | 900μm |
| Fiber mode | Single & multi mode |
| Operation time | About 120s ( no fiber cut ) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 40dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB |
| Mechanical durability (500 times) | IL ≤ 0.2dB |
| Drop-off test (drop-off height 4m, | IL ≤ 0.2dB |
|
once per direction, totally 3 times) |
