Product Details:
Payment & Shipping Terms:
|
| Product: | FTTH Field Installable LC/APC Fast Connector | Connector Type: | LC/APC |
|---|---|---|---|
| Applicable For: | 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable | Color: | Green |
| Durability: | >500 Times | Operation Temperature: | -40~+75°C |
| Insertion Loss: | <0.3dB | Application: | FTTH |
| High Light: | LC APC Fiber Optic Connectors,0.9mm Cable Fiber Optic Connectors,FTTH Field Assembly Optical Connector |
||

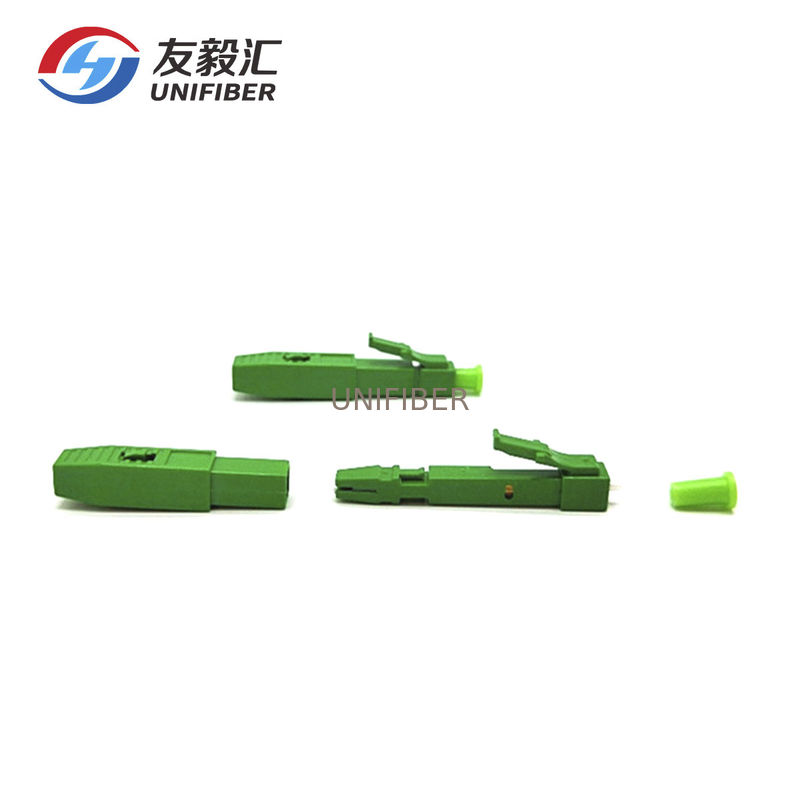

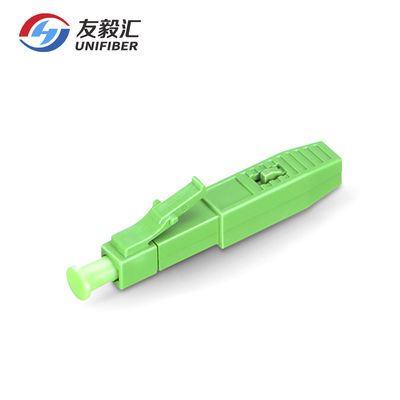

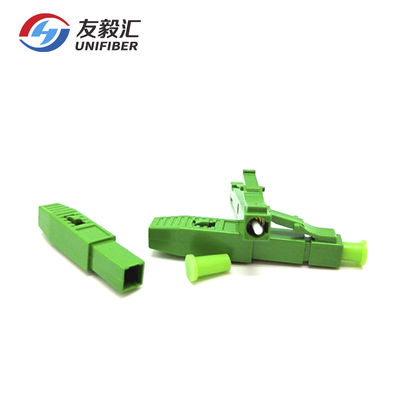

FTTH Field Installable LC/APC fast connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mmx3.0mm cable diameter.
Features:
Reliable and superior optical performance
Quick and easy Installation
Metal V-shape cavity work well in high and low temperature
Cable Tensile test complies with Telcordia GR-326-CORE
Application:
FTTH/CATV network
Telecome network
Ethernet network
Optic communication Equipment
| Item | Technical Parameters |
| Suitable Cable OD | 2.0mm, 3.0mm, 0.9mm |
| Optical fiber diameter | 125μm |
| Tight buffer diameter (μm) | 900μm |
| Fiber mode | Single & multi mode |
| Operation time | About 120s ( no fiber cut ) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 40dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB |
| Mechanical durability (500 times) | IL ≤ 0.2dB |
| Drop-off test (drop-off height 4m, | IL ≤ 0.2dB |
|
once per direction, totally 3 times) |
