| Product: | LC Multimode OM3 Duplex Adapter | Fiber Counts: | Duplex |
|---|---|---|---|
| Fiber Mode: | Multimode OM3 | Color: | Aqua |
| Package: | Blister Case | OEM: | Support |
| High Light: | LC/UPC Fiber Optic Adapter,OM4 Fiber Optic Adapter,LC/UPC Multimode Optical Adapter |
||

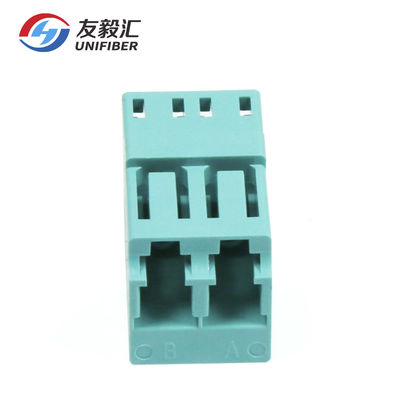

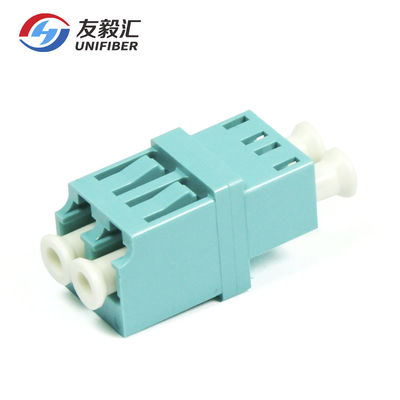

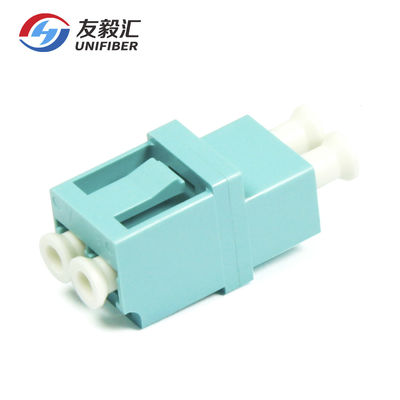

LC Multimode OM3 Duplex Adapter is a mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve that holds two ferrules together. They are used to connect optical fiber connectors of the same type, such as FC, SC, LC, ST, MU, MTRJ, D4, DIN, MPO ect, widely used in optical fiber communications equipment, measuring appliance and so on, the performance stably reliable.
| Features | Applications |
| Simplex, duplex versions available | LAN, WAN, CATV |
| Phosphor bronze or Zirconia sleeve | FTTX, FTTH |
| Low insertion loss and back reflection loss | Telecommunication networks |
| High precision alignment | Fiber Communication Systems |
| Compact design | Data Processing Networks |
| Comply to ROHS requirement | Industrial, Mechanical and Military |
Performance Specifications
| Parameter | SM | MM | ||
| Polish | PC | UPC | APC | PC |
| Wire Diameter(mm) | 0.9mm,2.0mm,3.0mm | |||
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Interchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
