Product Details:
Payment & Shipping Terms:
|
| Product: | LC APC Duplex Adapter | Connector: | LC/APC |
|---|---|---|---|
| Fiber Counts: | Duplex | Fiber Mode: | Single Mode |
| Color: | Green | Package: | Blister Case |
| OEM: | Support | ||
| Highlight: | LC/APC Fiber Optic Duplex Adapter,0.9mm Wire Fiber Optic Duplex Adapter,FTTH LC APC Duplex Adapter |
||

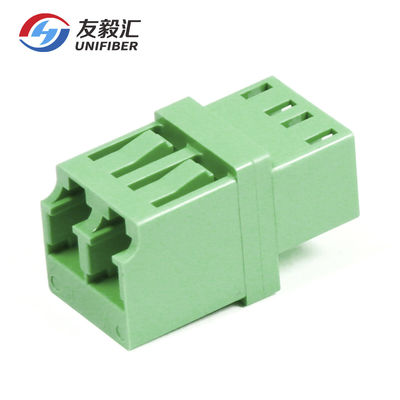

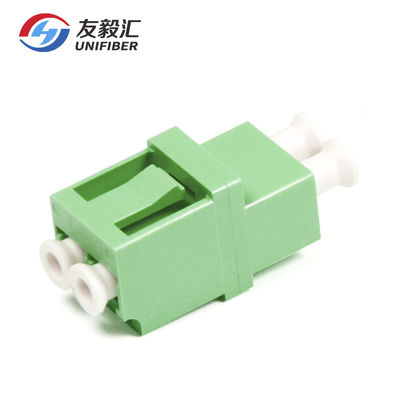

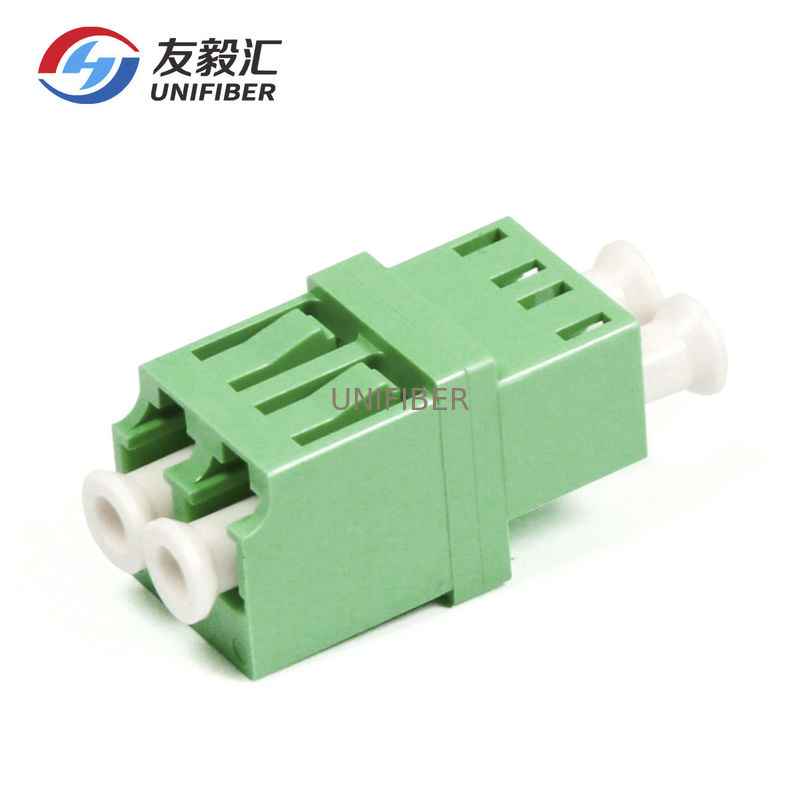

Fiber Optic Single Mode LC APC Duplex Adapter are used to join two fiber optic patch cables together.They are available for use with either singlemode or multimode patch cables.
Features
LC/SC/FC/ST Type Optional
UPC or APC Optional
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
Zirconia Sleeve ,Compact design
Low insertional loss, High return loss
Comply with IEC, Telcordia GR 326 and JIS standard
Applications
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Testing Instruments
CATV System
Performance Specifications
| Parameter | SM | MM | ||
| Polish | PC | UPC | APC | PC |
| Wire Diameter(mm) | 0.9mm,2.0mm,3.0mm | |||
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Interchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
