Product Details:
Payment & Shipping Terms:
|
| Product: | LC Duplex Multimode OM3/OM4 Fiber Optic Adaptor | Connector: | LC/UPC |
|---|---|---|---|
| Fiber Counts: | Duplex | Fiber Mode: | OM3 OM4 |
| Color: | Aqua | Structure: | With Flange |
| Package: | Blister Case | OEM: | Support |
| Highlight: | LC/UPC Fiber Optic Adaptor,OM4 Fiber Optic Adaptor,LC/UPC Multimode Optical Adaptor |
||

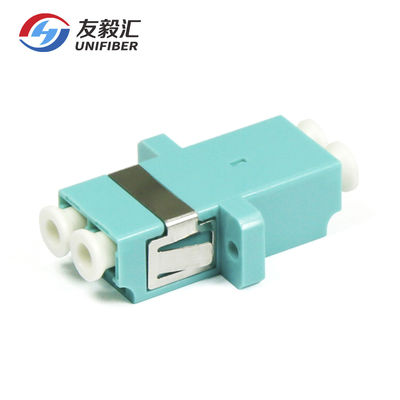

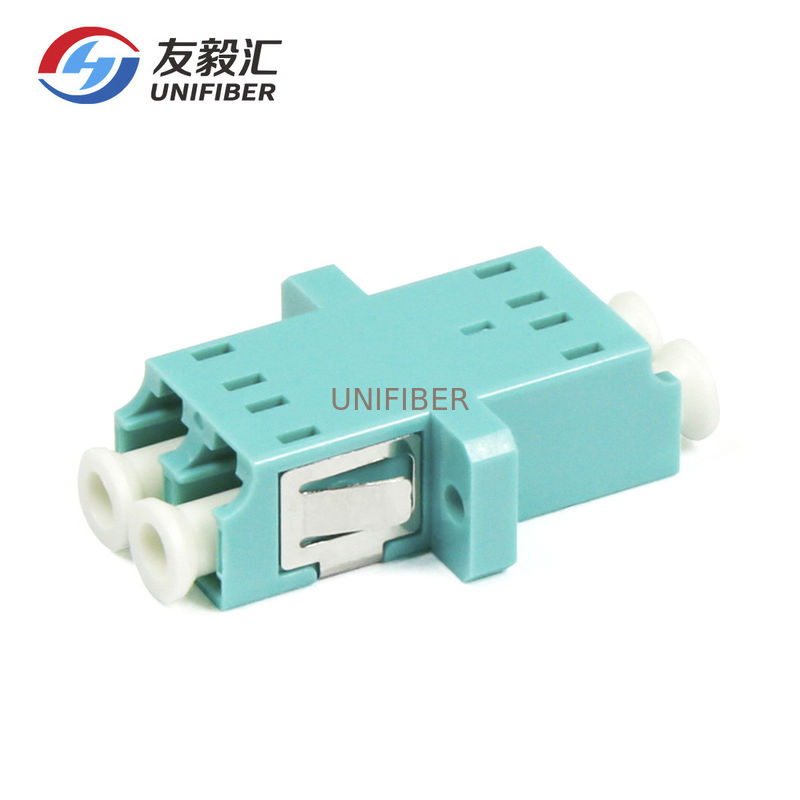

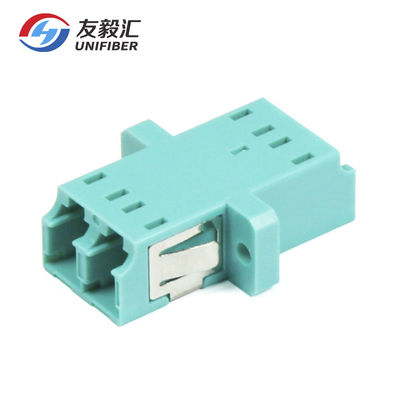

LC/UPC to LC/UPC Duplex Multimode OM3/OM4 Fiber Optic Adaptor are used to join two fiber optic patch cables together.They are available for use with either singlemode or multimode patch cables.
Features
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
LC/SC/FC/ST Type Optional
UPC or APC Optional
Zirconia Sleeve ,Compact design
Low insertional loss, High return loss
Comply with IEC, Telcordia GR 326 and JIS standard
Applications
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Testing Instruments
CATV System
Performance Specifications
| parameter | UPC | APC | UPC |
| insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | >1000 | ||
| operatingtemperature | -40~75℃ | ||
| storage temperature | -40~85℃ | ||
| interchangeability | ≤0.2dB | ||
| repeatability | ≤0.2dB | ||
