Product Details:
Payment & Shipping Terms:
|
| Product: | LC/UPC Quad Fiber Optic Adaptor | Connector: | LC/UPC |
|---|---|---|---|
| Fiber Counts: | Quad | Fiber Mode: | Single Mode |
| Color: | Blue | Structure: | With Flange |
| Package: | Blister Case | OEM: | Support |
| High Light: | LC/UPC Quad Fiber Optic Adaptor,CATV Quad Fiber Optic Adaptor,LC/UPC Fiber Optic Cable Adapter |
||

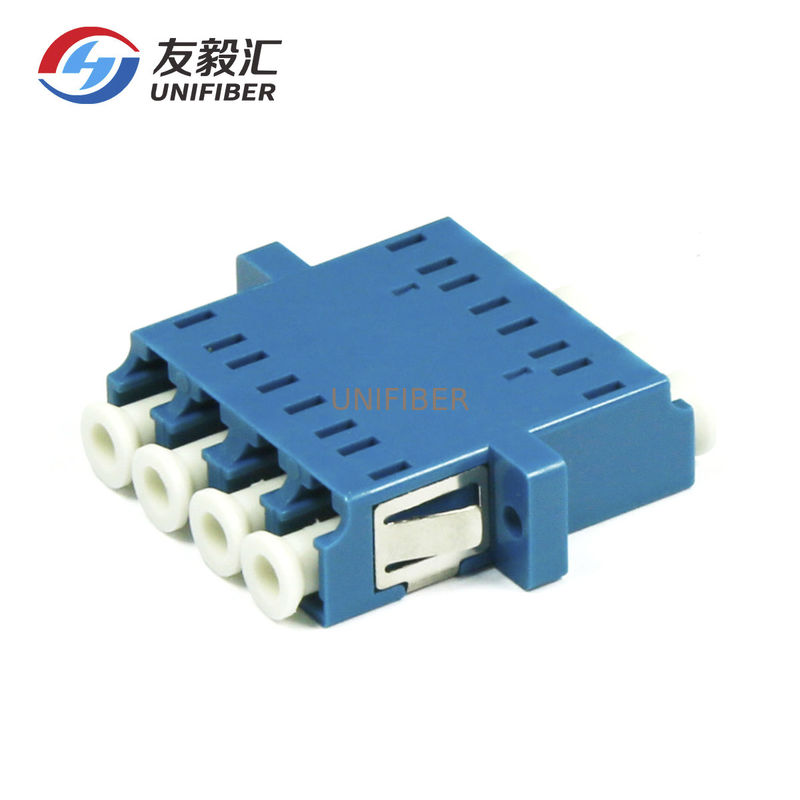

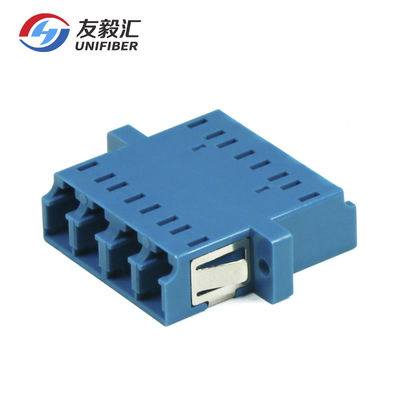

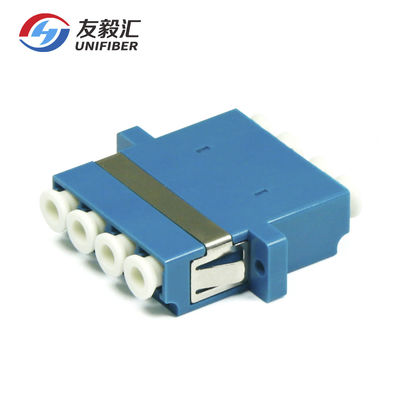

High Precision Mechanical Dimension Single Mode LC/UPC to LC/UPC Quad Fiber Optic Adaptor With Flange
LC quad fiber optic adapter terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.
Features
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PCAPCUPC optional
Simplex / Duplex/Quad
Applications
CATV
Active device termination
Telecommunication networks
Metro networks
Local Area Networks (LAN)
Data processing networks
Wide Area Networks (WAN)
Test equipment
Premise installations
Performance Specifications
| Item | Specification | Item | Specification |
| Adapter Singlemdoe(Ceramic Sleeve) |
ST (metal body) | Adapter Multimode(Bronze Sleeve) |
ST (metal body) |
| SC/PC | SC/PC | ||
| SC/PC/duplex | SC/PC/duplex | ||
| SC/APC | SC/APC | ||
| SC/APC/duplex | SC/APC/duplex | ||
| FC/PC | FC/PC | ||
| FC (D-type metal ) | FC (D-type metal ) | ||
| LC/PC | LC/PC | ||
| LC/PC/duplex | LC/PC/duplex | ||
| LC/APC | LC/APC | ||
| LC/APC/duplex | LC/APC/duplex | ||
| DIN/PC/APC | DIN/PC/APC | ||
| MTRJ plastic | MTRJ plastic | ||
| Hybrid Adaptor Singlemdoe(Ceramic Sleeve) |
FC-SC | Hybrid Adaptor Multimode(Bronze Sleeve) |
FC-SC |
| FC-ST | FC-ST | ||
| SC-ST | SC-ST | ||
| DIN-SC | DIN-SC | ||
| DIN-ST | DIN-ST | ||
| DIN-FC | DIN-FC |
Contact Person: Kerry Sun
Tel: +86-135-9019-2305
