SC APC G657A2 4.6mm LSZH 80M FTTH Drop Cable For FTTH

Large Image : SC APC G657A2 4.6mm LSZH 80M FTTH Drop Cable For FTTH

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	Outdoor FTTH Drop Cable SC APC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	Outdoor FTTH Drop Cable Patch Cord SC APC	Connector:	SC/APC
Fiber Type:	Single Mode G657A2	Outer Diameter:	4.6mm
Inner Diameter:	3.0mm	Cable Jacket:	LSZH
Length:	20 40 60 80 100m	Application:	FTTH
Highlight:	G657A2 FTTH Drop Cable , 80M FTTH Drop Cable , 4.6mm SC APC Patch Cord

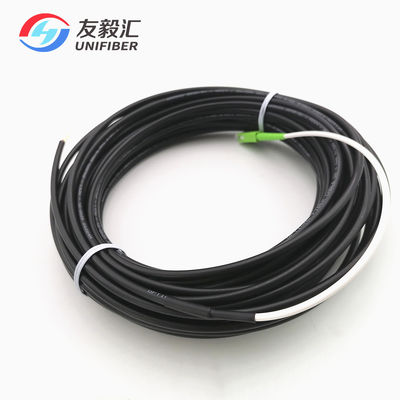

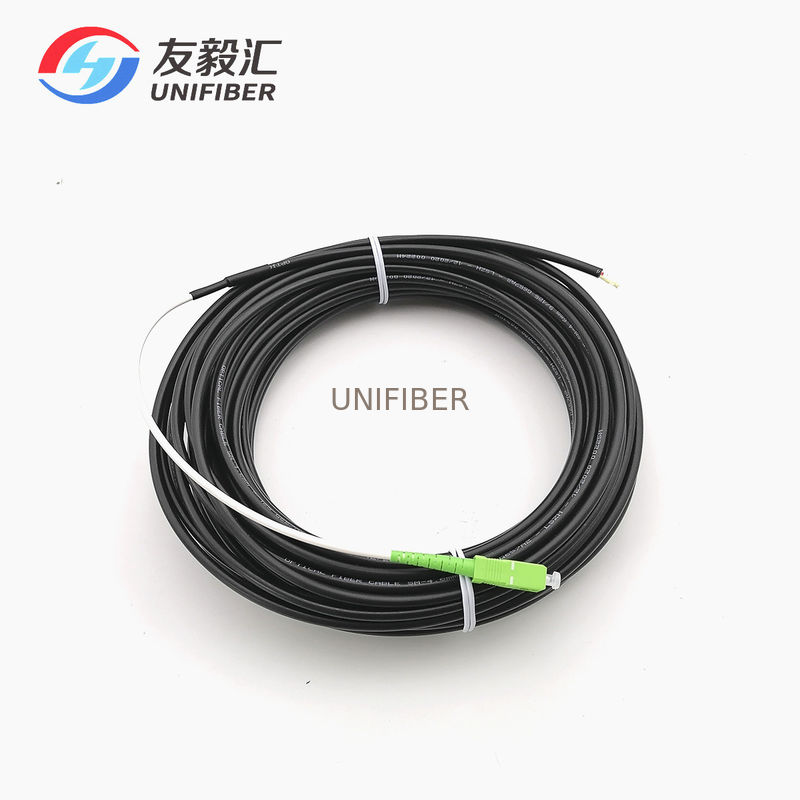

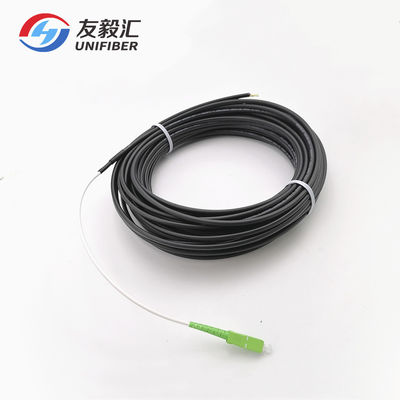

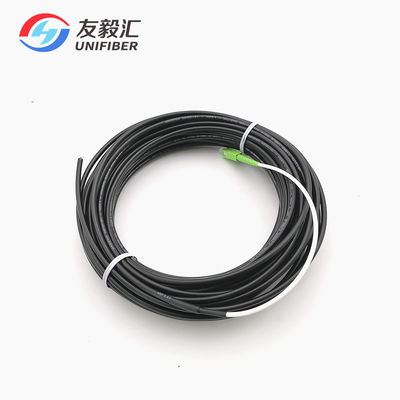

Outdoor FTTH Drop Cable Patch Cord SC APC G657A2 4.6mm Black LSZH Jacket 80M

This Outdoor FTTH Drop Cable Patch Cord SC APC G657A2 4.6mm Black LSZH Jacket is a customized indoor/outdoor fiber optic patch cord/pigtail with inside 3.0mm inner white LSZH sheath, outer jacket is LSZH Material, the outer black 4.6mm jacket can be stripped easily if customer need use inside 3.0mm cable to connector with patch panels,terminal box and make splicing installation .The fiber we used G657A2 fiber.For this type Patch cord/ pigtail length always 20M,30M,40M,60M,80M,100M or others.

Features:

Low insertion loss, high return loss
High credibility and stability
Good in repeatability and exchangeability

Small, light, high dense connection

Application

Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network

MODEL NO	Outdoor FTTH Drop Cable Patch Cord SC APC G657A2 4.6mm Black LSZH Jacket 80M
Fiber Type	Single Mode G657A2
Cable Assembilies	Simplex
Jacket Material	LSZH or PE
Cable Diameter (mm)	4.6mm(Outer)+3.0mm(Inner)
Connector Type	SC
End Face	APC
Working Wavelength (nm)	1310/1550
Insertion Loss (dB)	≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)	UPC ≥55dB APC ≥60dB
Exchangeability	≤0.2dB
Operating Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85

SC APC G657A2 4.6mm LSZH 80M FTTH Drop Cable For FTTH 0
