Product Details:
Payment & Shipping Terms:
|
Product: | FTTH Caja Nap Fibra óptica Terminal Box 9 Output Ports With Huawei Mini Sc Adapter | No. Of Capacity: | Splice 16 Fibers (1trays, 16fiber/tray) |
---|---|---|---|
Waterproof Grade: | IP65 | Output Ports: | 9 Ports |
Material: | PC+ABS | Installation: | Wall/Pole Mount |
PLC Splitter: | 1:8 Mini PLC Splitter | Application: | FTTH |
High Light: | FTTH PLC Splitter Terminal Box,IP65 PLC Splitter Terminal Box,Sc Adapter FTTH Termination Box |

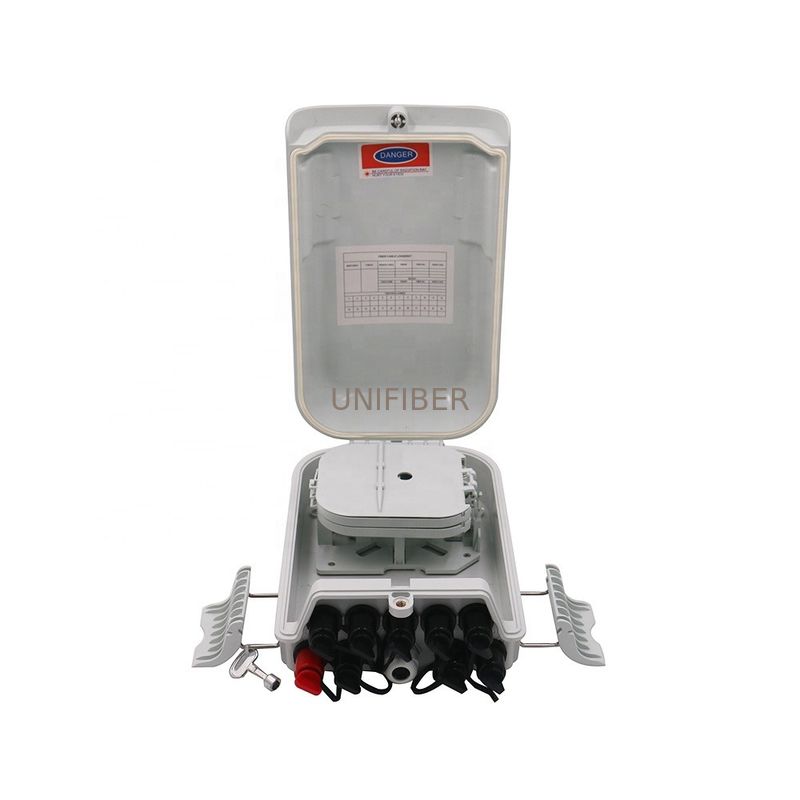

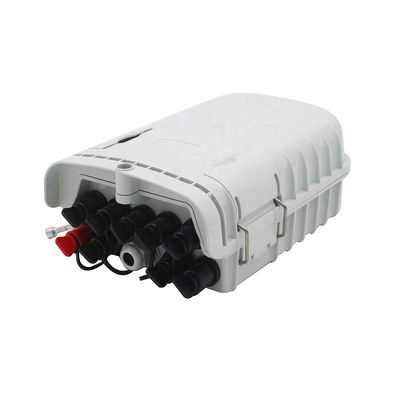

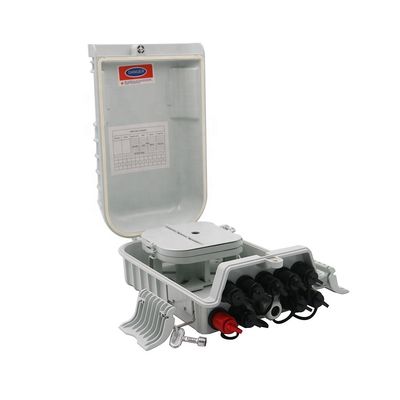

FTTH caja nap fibra óptica terminal box is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The CTO Box has special features that transform it into a highly adaptable product, for both power and distribution networks. With a Modular structure and resistant to weather conditions, the box guarantees the storage, completion and distribution of long-term optical cables.
Features:
Water-proof design with IP-65 Protection Level.
Integrated with flap-up splice cassette and adaptor holder
All stainless metal plate and anti-rusting bolts, nuts
Fiber bend radius control more than 40mm
Suitable for the fusion splicer or mechanical splice
1Pcs of 1*8 Splitter can be installed as an option
Mechanical sealing structure and mid-span cable entry.
8 ports cable entrance for drop cable
8 adapter for drop cable patching
Applications:
Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
Specification:
