Product Details:
Payment & Shipping Terms:
|
| Products: | Pre-connected Drop Cable SC Fiber Optic Faceplate | Connector: | SC/APC |
|---|---|---|---|
| Case Material: | ABS Or PC | Dimension: | 80mm*100mm*23mm |
| Ports: | 1/2/4 Ports | Pigtails: | Pre-loaded |
| Application: | FTTH Wall Mount | ||
| High Light: | SC Fiber Optic Faceplate,Pre Connected Fiber Optic Faceplate,FTTH Drop Cable Termination Box |
||

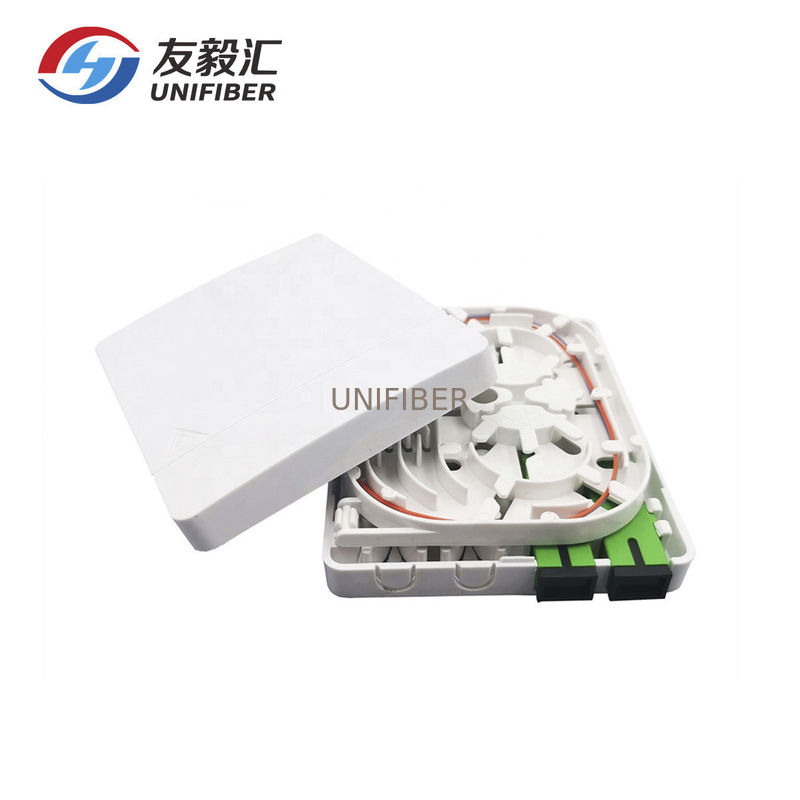

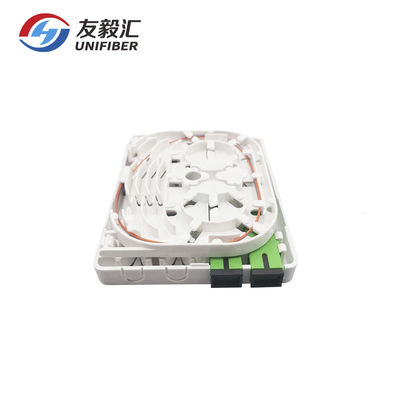

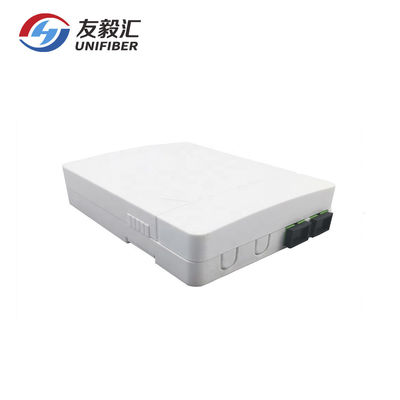

This FTTH Pre-connected drop cable SC fiber optic faceplate is specifically designed for FTTH, FTTx applications, with Two layers structure, the Shape 8 fiber path on upper layer and circular fiber paths enable omnibearing way for fiber coiling. and it protects fiber optic splicing and termination of drop cables.it accomodate 1 or 2 Ports SC simplex or LC duplex adapters.
Features
Light weight, small size, easy installation.
Total three cable ports on two sides of box allow drop cables route in and out from different sides.
Cable ports are suitable for 2mm~3mm drop cables.
Capacity: 1 Core, 2 Core
Suitable for wall mounted or desk-top mounted
Application
FTTH Application
CATV networks
Data communication networks
Local area Networks
Telecommunication networks
