Product Details:
Payment & Shipping Terms:
|
| Product: | SC Duplex 4 Port Ftth Fiber Termination Box | Fiber Counts: | 4 Fiber |
|---|---|---|---|
| Connector: | SC Duplex | Max Splitting: | 1:4 PLC Splitter |
| Max Capacity: | 8 Core | Material: | ABS+PC |
| Application: | FTTH Wall Mount | ||
| Highlight: | Ftth Fiber Termination Box,SPCC Fiber Termination Box,FTTH SC Duplex Terminal Box |
||

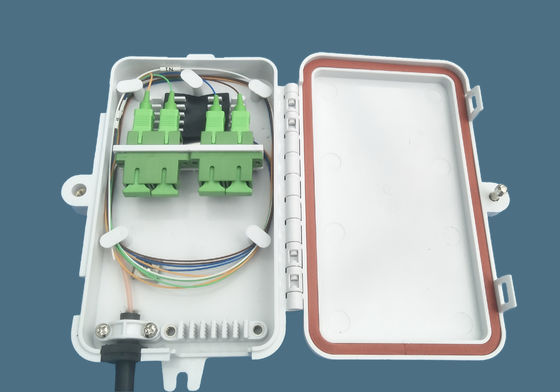

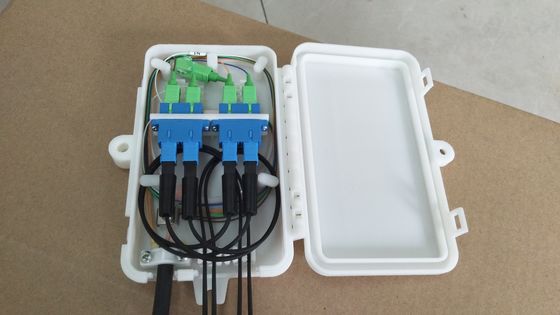

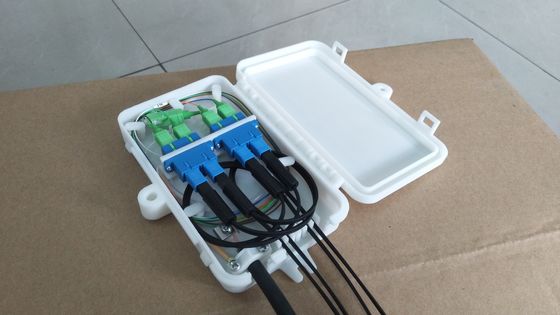

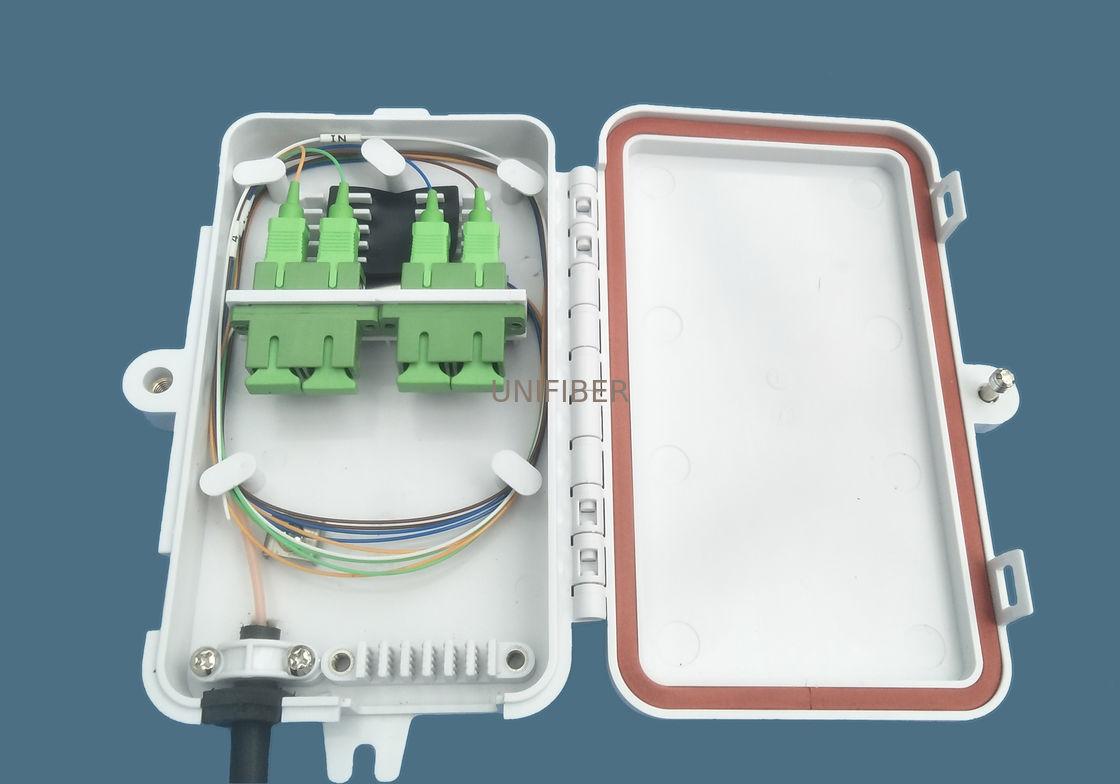

This SC duplex 4 port fiber termination box is suitable for the indoor cable's termination, fixing and fiber pigtail splicing in building and villas.
Features:
small size, light weight, beautiful appearance;
installed on the wall, with mechanical protection;
can achieve multiple fiber connections —direct splicing and divergent, apply to SC duplex adapter;
can effectively manage the fibers;
Specification:
| size (mm):L×W×H | 178*114*28 |
| weight (Kg) | 0.12 |
| cable diameter(mm) | Ø3~Ø10 |
| inlet/outlet: | 1/12 |
| capacity: | 8 (single core) |
| max s plitting: | 1:4(1pcs) |
