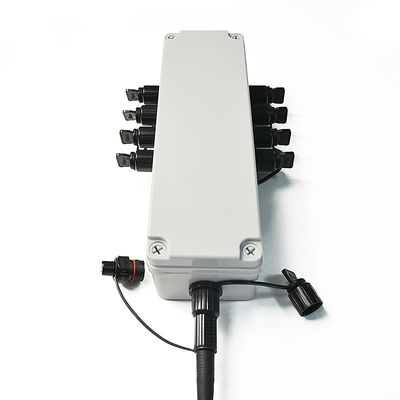

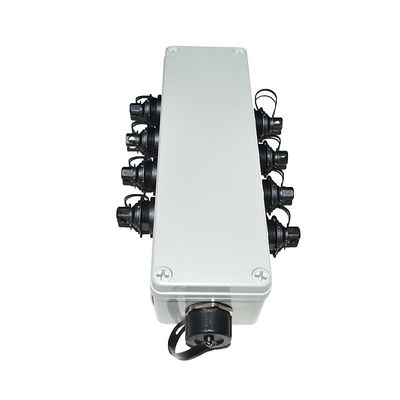

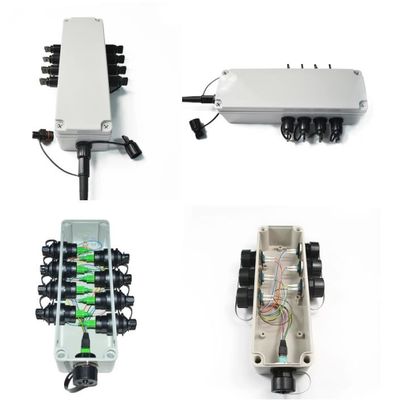

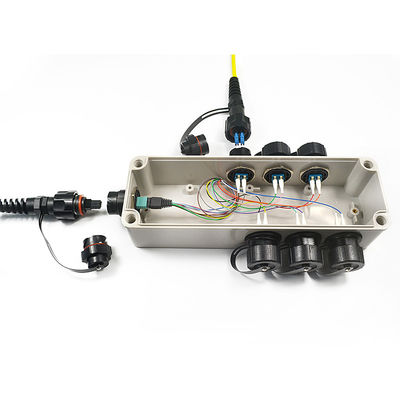

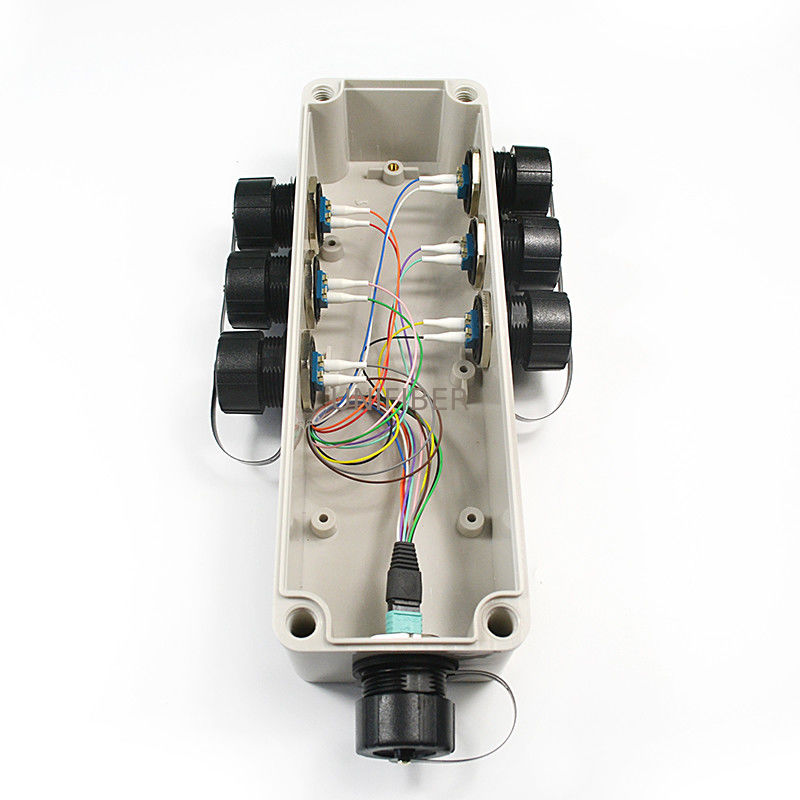

5G FTTA Fiber Optical Distribution Enclosure ODVA Connectors

Outdoor Waterproof Mini Fiber Optical Distribution Enclosure with pre connect mini-sc adapter matching Huawei deviceThis is Distibution box it is used for FTTH fiber distribution design Pre connect MINI SC adapter based on different clients request it can open 4/6/8/12/24 port for our clients .With IP65 grade outdoor use .

Features

Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MTP.
Protection grade: IP65
Internal inventory redundant optical fiber, convenient in operation and maintenance.
Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of
multi-storey and high-rise tenants,easy to install, easy to install.
Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with
standard of communication industry, flame retardant grade UL94V - level 0
Structure: open type
Color: grey (color can be customized)
Sealing way: TPE seals
Installation method: overhead, hanging.
Size (H*W*D)mm : 250* 80*70mm

Application

Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
