Product: | FTTx Outdoor CBT Connectorised Block Terminals 4 Ports With Waterproof Huawei Mini SC | Material: | ABS+PC |
---|---|---|---|
Capacity: | 4 Ports | Connector: | Huawei Mini SC |
PLC Splitter: | 1x4 PLC Splitter | Waterproof Grade: | IP68 |
Installation: | Aerial Or Pole Mounted | Application: | FTTx |
High Light: | ABS Waterproof fiber termination unit,4 Ports ftth termination box,Huawei Mini SC ftth termination box |

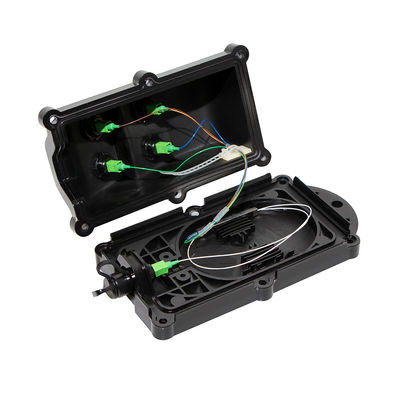

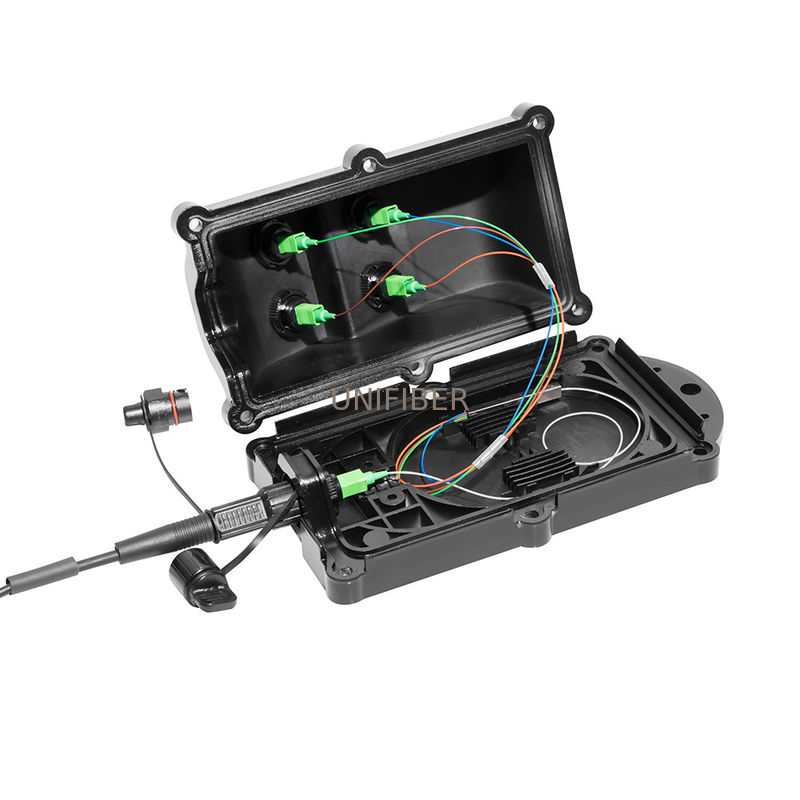

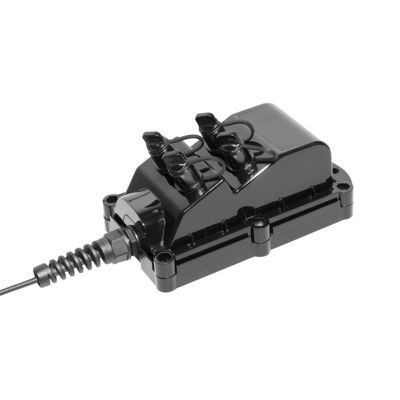

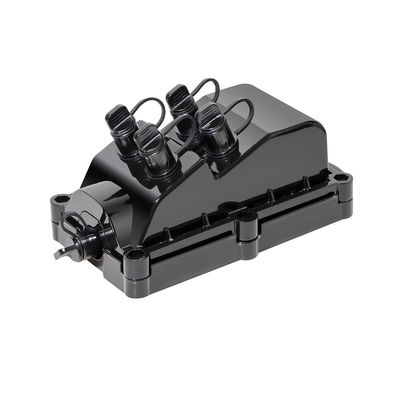

FTTx Outdoor CBT Connectorised Block Terminals 4 Ports With Waterproof Huawei Mini SC
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment. This Multiport Service Terminal (MST) Always Come as 4/8/12 Ports, it can load with 1x4 or 1x8 mini steel tube PLC splitter inside the box and load with Optitap/ODVA/MINI SC or other outside hardened connectors based on specific requirements, Customer can use as fiberhub to connect with feeder cable and drop cable.
Features:
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Application:
Outdoor harsh environment
FTTH field
FTTA field
Trunk cable connecting
Prospecting or military communication
Specification:
