Product Details:
Payment & Shipping Terms:
|
| Product: | Single Mode FC/UPC Variable Fiber Optic VOA In-Line Attenuator 0~60dB | Fiber Mode: | Single Mode Or Multimode |
|---|---|---|---|
| Wavelength: | 1310~1550(SM)/850~1300(MM) | Attenuation Range: | 0 ~ 60dB |
| Adjustment Type: | Hand Adjustment Or Screw Adjustment | Pigtail Style:: | 3.0mm |
| Connector: | FC/UPC | Max Optical Input Power: | 200mW |
| Attenuation Accuracy: | ±0.8dB | ||
| High Light: | Variable Fiber Optic Attenuator,Single Mode Fiber Optic Attenuator,60dB Fiber Optic Attenuator |
||

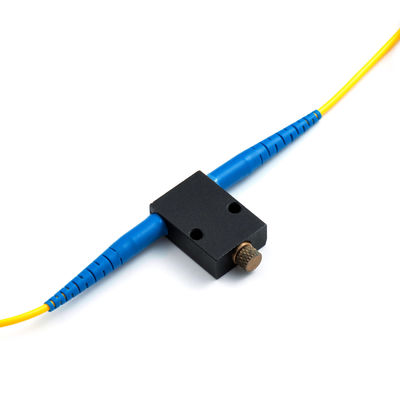

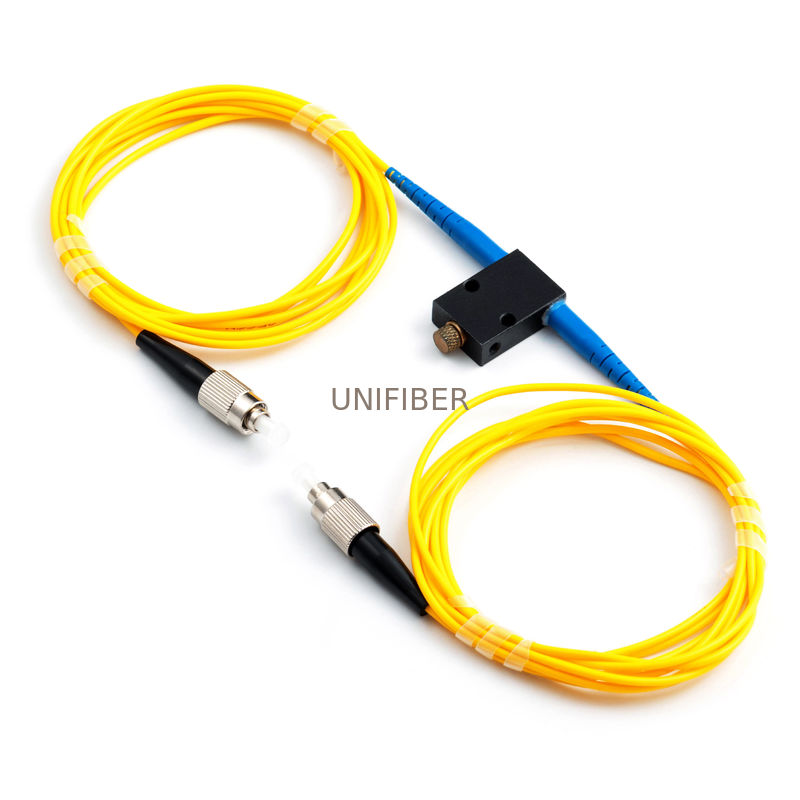

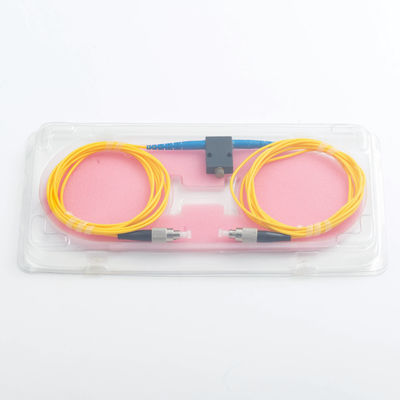

Single Mode FC/UPC Variable Fiber Optic VOA In-Line Attenuator 0~60dB
As optical passive devices, Fiber Optic VOA In-Line Attenuator are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Key Features
High Precise attenuation value
Perfect environmental stability and reliability
Low additional loss
Flawless end face
Wide attenuation range (variable)
Applications
Fiber optical telecommunication system
FTTH, CATV, LAN
Subscriber loop
Fiber optical sensor
Testing equipment
Specification
| Parameter | Specification | |||
| Type(nm) | 1310 | 1550 | 1310/1550 | 850/1310 |
| Wavelength (nm) | 1310±50 | 1550±50 | 1260~1650 | 850±40 or 1310±40 |
| Attenuation range(dB) | 0.8 ~ 60 | |||
| Original loss(dB) | ≤0.8 | |||
| Return Loss(dB) | ≥50 | ≥30 | ||
| Fiber type | SMF-28 | 50/125 or 62.5/125 MM | ||
| PDL(dB) | ≤0.15 | |||
| Operating Temperature (℃) | 0 ~ + 70 | |||
| Storage Temperature (℃) | 40 ~ + 85 | |||
| Dimensions (mm) | 26 x 18 x 8 | |||
