Product Details:
Payment & Shipping Terms:
|
| Product: | 10Gbase-T Fiber To Copper SFP Transceiver RJ45 30M | Data Rate: | 10G SFP+ Copper |
|---|---|---|---|
| Connector: | RJ45 | Reach Distance: | 30m |
| Cable: | Cat 6a/7 Cable | Certification: | CE RoHS FCC |
| Brands: | Can Be Customized | ||
| Highlight: | Copper Optical Sfp Transceiver,10G SFP Fiber Optic Transceiver,Singlemode Optical Sfp Transceiver |
||

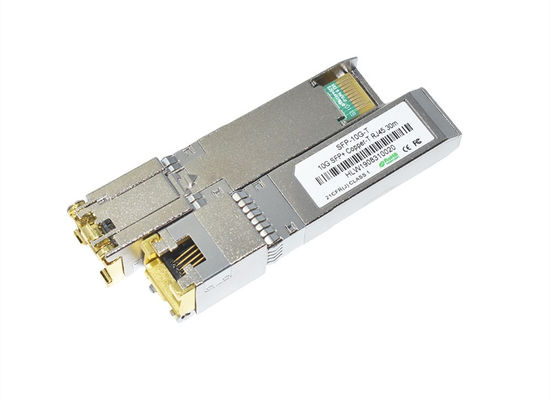

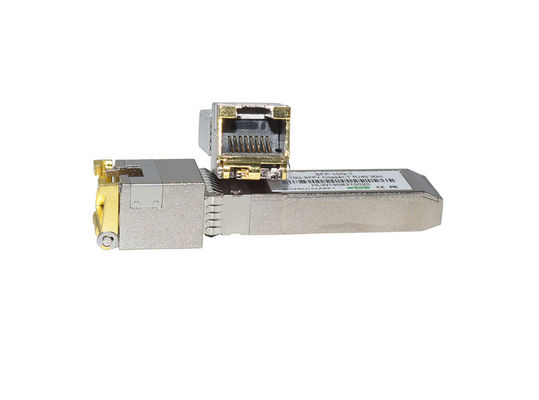

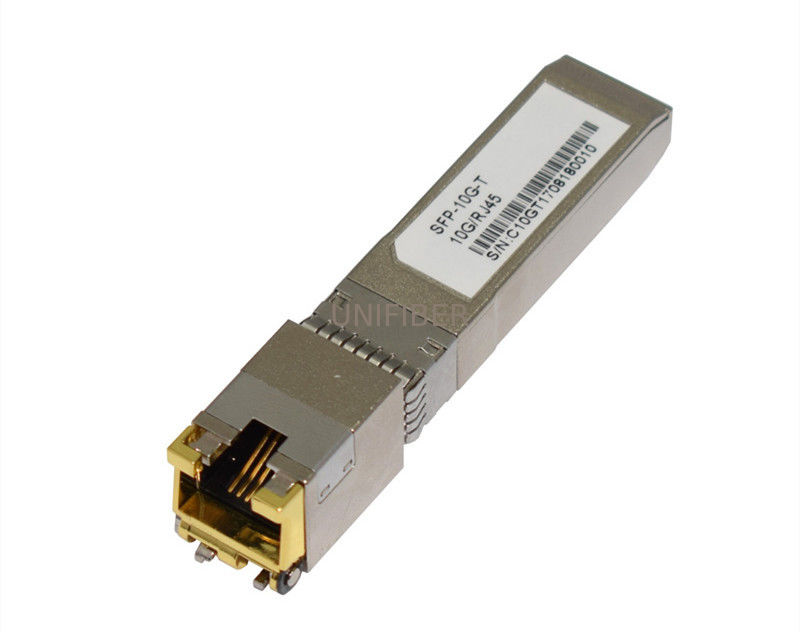

10Gbase-T Fiber To Copper SFP Transceiver RJ45 30M
Single mode 1310nm 10G SFP+ Dual Fiber 10KM Optical SFP transceiver Module
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication.
FEATURES :
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable- Max 30M
Ambient Operating temperature: 0°C to +65°C
APPLICATIONS :
10 Gigabit Ethernet
Ordering Information:
| Line Port | Cable | Reach | Host Port |
| 10Gbase-T | CAT6A | 30m | 10GBase-R |
| 5Gbase-T | CAT5E | 50m | 5GBase-R |
| 2.5Gbase-T | CAT5E | 50m | 2.5GBase-X |
| 1000base-T | CAT5E | 100m | SGMII with AN |
| 100base-Tx | CAT5E | 100m | SGMII with AN |
