Product Details:
Payment & Shipping Terms:
|
Product: | 1.25G Gigabit Ethernet 1000base-T Fiber To RJ45 Transceiver 100m | Data Rate: | 1000base-T Fiber To RJ45 Transceiver |
---|---|---|---|
Cable: | Cat 5 | Reach Distance: | 100M |
Connector: | RJ45 | Certification: | CE RoHS FCC |
Brands: | Can Be Customized | ||
High Light: | SERDES Interface Sfp Fiber Transceiver,1000BASE-T Sfp Optical Transceiver,1.25G Gigabit Ethernet Sfp Fiber Transceiver |

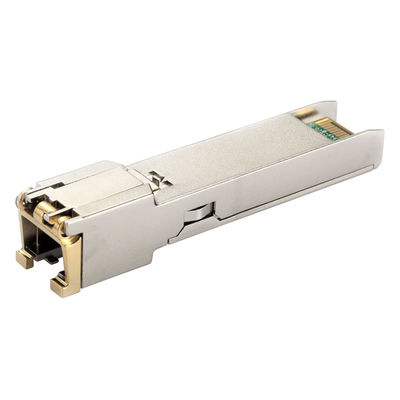

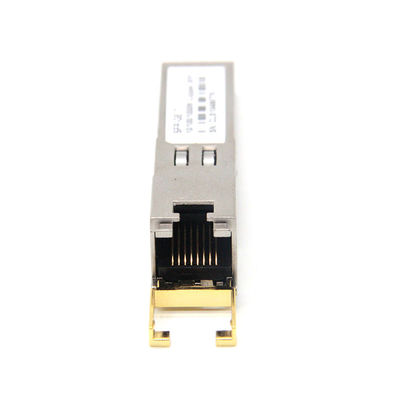

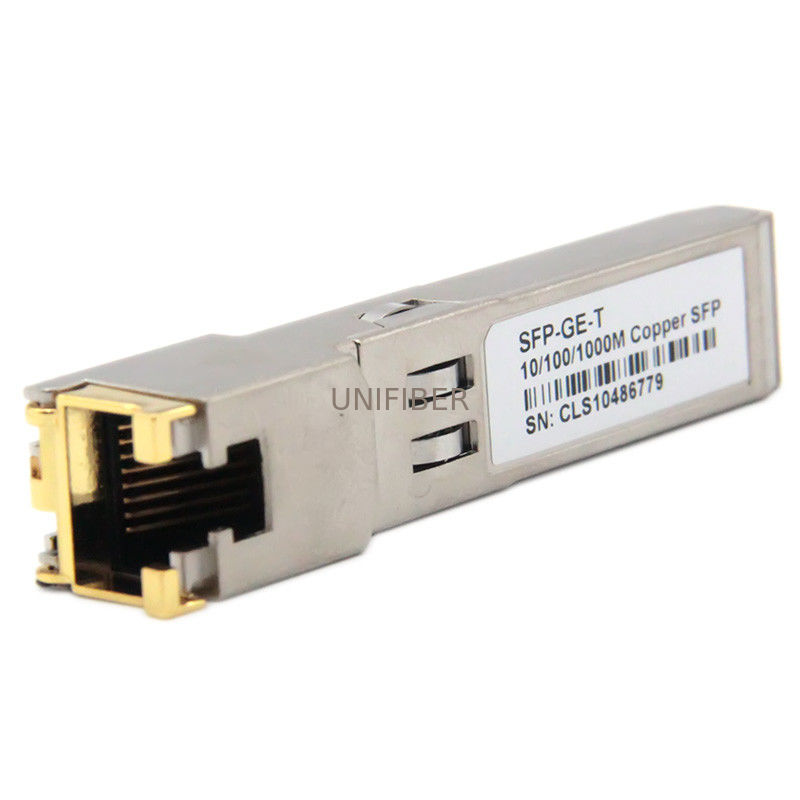

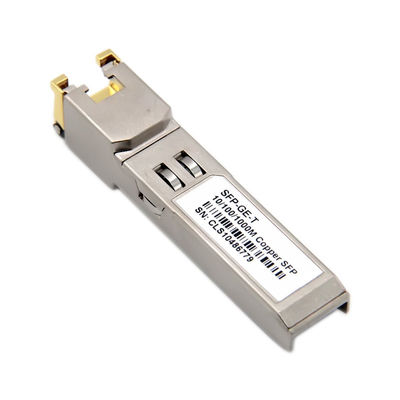

1.25G Gigabit Ethernet 1000base-T fiber to RJ45 transceiver 100m
10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. it is full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. and provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.
Features
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (0°C to +70°C )
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
10/100/1000Mbps compliant in host systems with SGMII interface
Applications
1.25 Gigabit Ethernet over Cat 5 cable
Switch/Router to Switch/Router Link
High speed I/O for file severs
Specification:
Brand | UNIFIBER or Customized |
Place of origin | China |
Form Factor | SFP |
Wavelength | 10/100/1000M |
Distance | 100M |
Data Rate (max) | 1000base |
Temperature (°C) | 0℃-70℃ |
Power Supply | 3.3v |
Connector | RJ45 connector |
Warranty | 3-year |
Certificate | CE , ROHS , FCC |
Compatible with | huawei,HP,H3C,ZTE,Juniper, etc |
DDMI | Yes |
Time of delivery | large stock, shipping within 24hours |
Package | 10pc/anti-static box |
