Product Details:
Payment & Shipping Terms:
|
| Product: | 100G QSFP28 ZR4 80KM 1310nm LC Dual Single Mode Fiber Transceiver | Data Rate: | 100G QSFP28 ZR4 |
|---|---|---|---|
| Form Factor: | QSFP28 | DDM/DOM: | Supported |
| Wavelength: | 1310nm | Transmission Distance: | 80km |
| Interface: | LC Duplex | Certification: | CE RoHS FCC |
| Brand: | Can Be Customized | ||
| High Light: | LC Duplex single mode fiber transceiver,80km sfp fiber transceiver,1310nm single mode fiber transceiver |
||

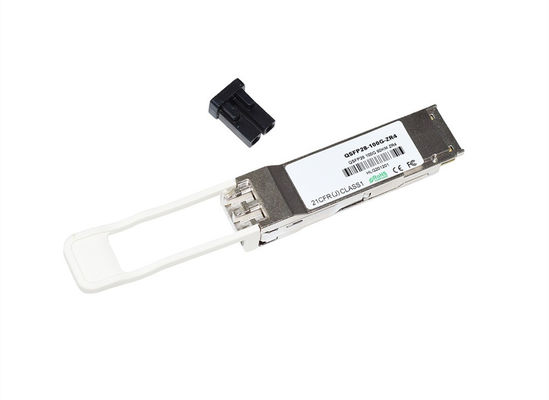

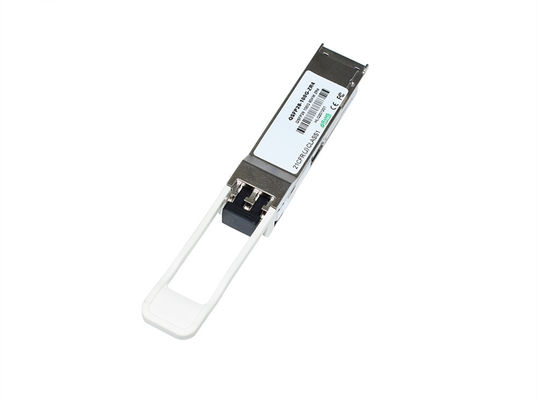

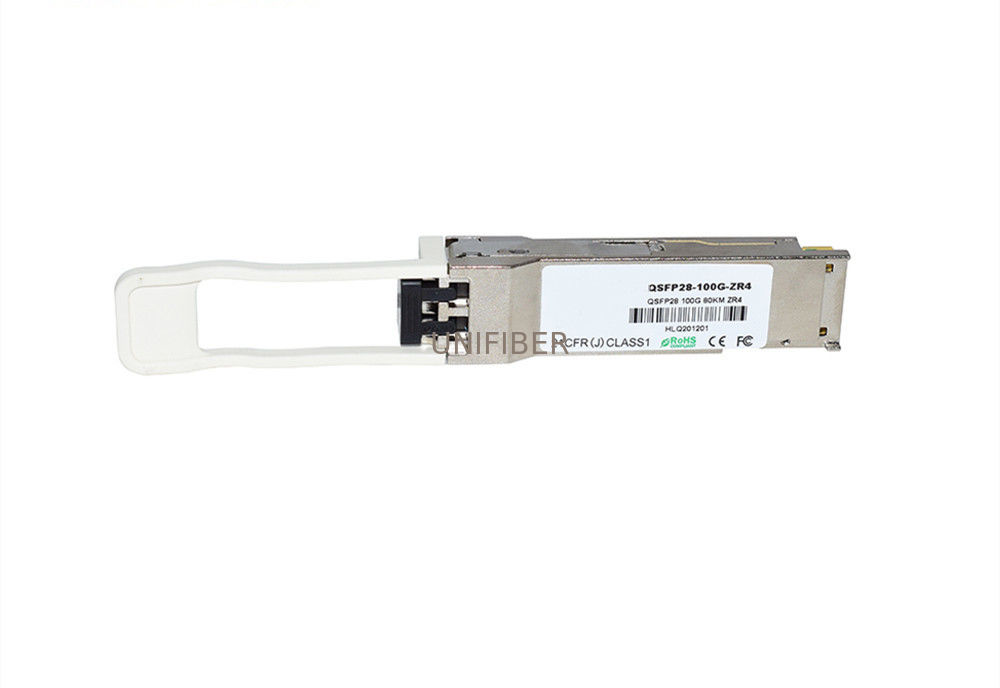

100G QSFP28 ZR4 80KM 1310nm LC Duplex Single Mode Fiber Transceiver
100G QSFP28 ZR4 80KM 1310nm LC Dual Single Mode Fiber Transceiver
100G QSFP28 ZR4 is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector
Features:
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 80km transmission on single mode fiber
Operating case temperature: 0℃ to 70℃
Single 3.3V power supply
RoHS 2.0 compliant
Applications:
100GBASE-ZR4
100G Ethernet Telecom networking
Specification:
| Spec. | Data Rate | Wavelength | Fiber | Distance | Optical | Tx Power | Rx Sens. | Temp. |
| (bps) | (nm) | Type | Comp. | (dBm) | (dBm) | (℃) | ||
| QSFP28 SR4 | 100G | 850 | 8x MMF | OM3 70 m | VCSEL | -6~2.4 | -10.3~2.4 | 0~70 |
| OM4 100 m | ||||||||
| QSFP28 IR4 PSM | 100G | 1310 | 8x SMF | 2 km | DML/PIN | -8.4~2.4 | -11 | 0~70 |
| QSFP28 CWDM4 | 100G | CWDM | 2x SMF | 2 km | DML/PIN | -6.5~2.5 | -10~2.5 | 0~70 |
| QSFP28 IR4 | 100G | LWDM | 2x SMF | 2 km | DML/PIN | -6.5~2.5 | -10~2.5 | 0~70 |
| LR4 | 100G | LWDM | 2x SMF | 10 km | DML/PIN | -4.3~4.5 | -10.6~4.5 | 0~70 |
| ELR4+ | 100G | LWDM | 2x SMF | 20 km | DML/PIN | -2.5~4.5 | -14.5~4.5 | 0~70 |
| ER4* | 100G | LWDM | 2x SMF | 30~40 km | EML/APD | -2.5~2.9 | -20.5~-3.5 | 0~70 |
