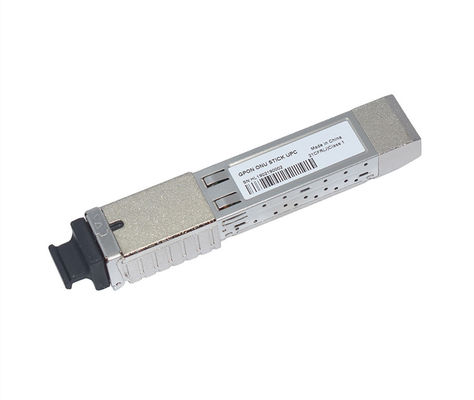

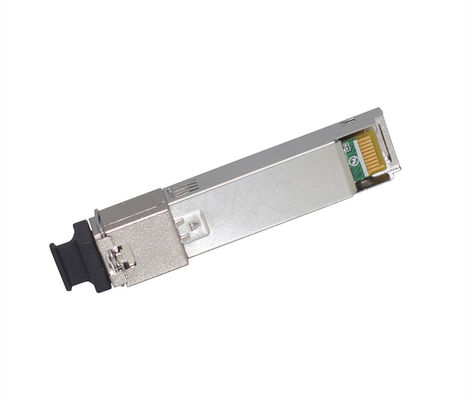

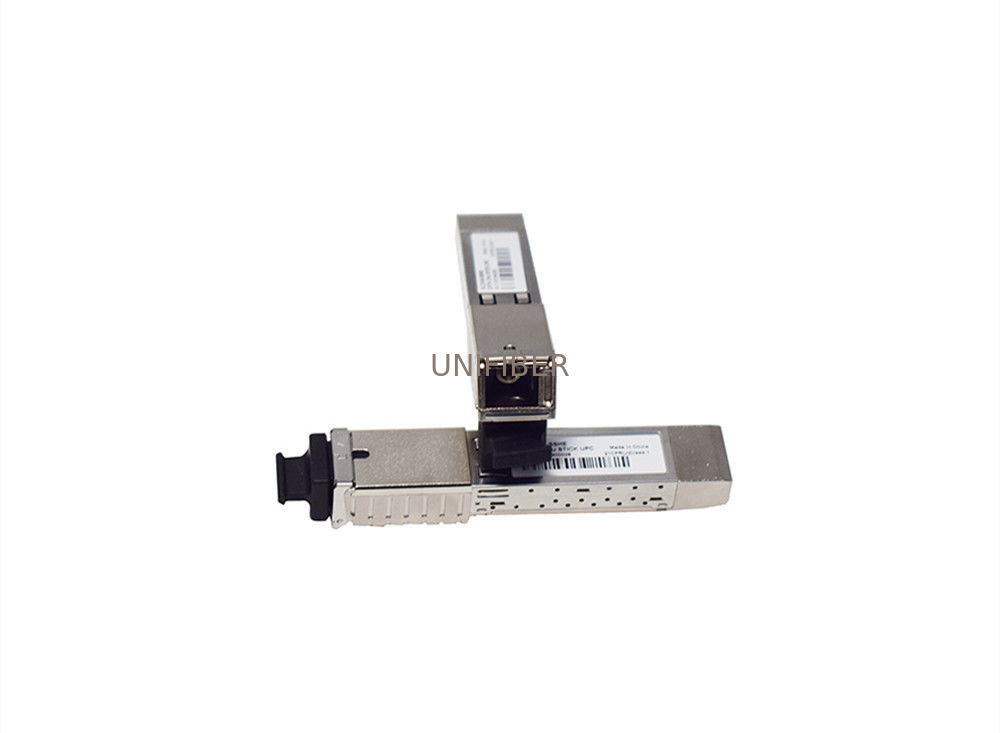

Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm

Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm
Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm

Large Image :  Huawei SC Fiber Optic Transceiver 1.25G 2.5G Tx1310 Rx1490nm

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: GPON ONU SFP Tx1310/Rx1490nm
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable

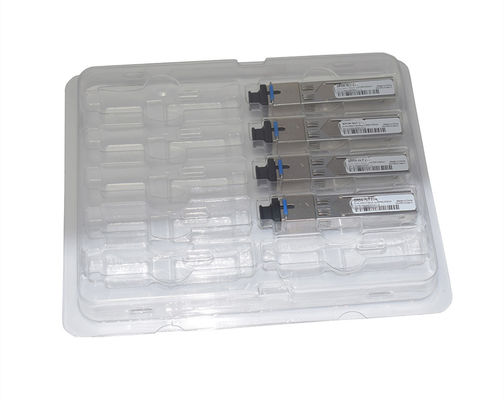

Packaging Details: Blister Case
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 1.25G/2.5G GPON ONU SFP Tx1310/Rx1490nm Wavelength: Tx1310/Rx1490nm
Data Rate: 1.25G/2.5G Reach: 20km
Interface: SC Compatiable: Huawei
High Light:

Huawei Compatible Fiber Optic Transceiver

,

2.5G Fiber Optic Transceiver

,

Rx1490nm Fiber Optic Transceiver

Huawei 1.25G/2.5G GPON ONU SFP Tx1310/Rx1490nm Class B+ SC Receptacle, I-Temp, Low Transmit Enable

GPON SFP with MAC is a G.984.2 (GPON) Optical Network Terminal (ONT) with Small Form-factor Pluggable (SFP) packaging. This product integrates a bi-directional optical transceiver function and GPON MAC function. By being plugged into the customer premise equipment (CPE) with standard SFP port directly, it provides an asymmetric 1.244Gbps upstream / 2.488 Gbps downstream GPON uplink to the CPE without requiring separate power supply.This product supports a sophisticated ONT management system, including alarms, provisioning, DHCP and
IGMP functions for a stand-alone IPTV solution at the ONT.This product supports Time of Day and 1PPS interface, can be managed from the OLT over the GPON using G.988 OMCI. It fits seamlessly into existing communications equipment, providing service providers with a
smooth upgrade to GPON. The solution vastly decreases the installation costs of deploying fiber access in MDUs and enables service providers to improve their revenue streams while decreasing OPEX.



Features

Single fiber bi-directional data links

1310nm DFB laser transmitter and 1490nm Super-TIA receiver

1.244Gbps burst mode transmission

2.488Gbps continuous mode receiver data rate

SFP 2x10 package with SC/UPC Receptacle Connector

Single 3.3V power supply  Digital diagnostic monitoring interface

LVPECL compatible data input/output interface

Provide TX burst mode signal detect function

LVTTL transmitter laser fault alarm

Low EMI and excellent ESD protection

Class I laser safety standard IEC-60825 compliant

RoHS6 Compliance Applications

Gigabit Passive Optical Networks (GPON)



Applications
Gigabit Ethernet Passive Optical Network (GPON) ONU





PON Series
Type Description
EPON OLT PX20+ EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 0ºC ~ +70ºC
EPON OLT PX20++ EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB
GPON OLT B+ GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C+ GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C++ GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT 7dBm GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature
GPON ONU SFP GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active
EPON ONU SFP EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
GPON ONU STICKER B+ SFP ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G
